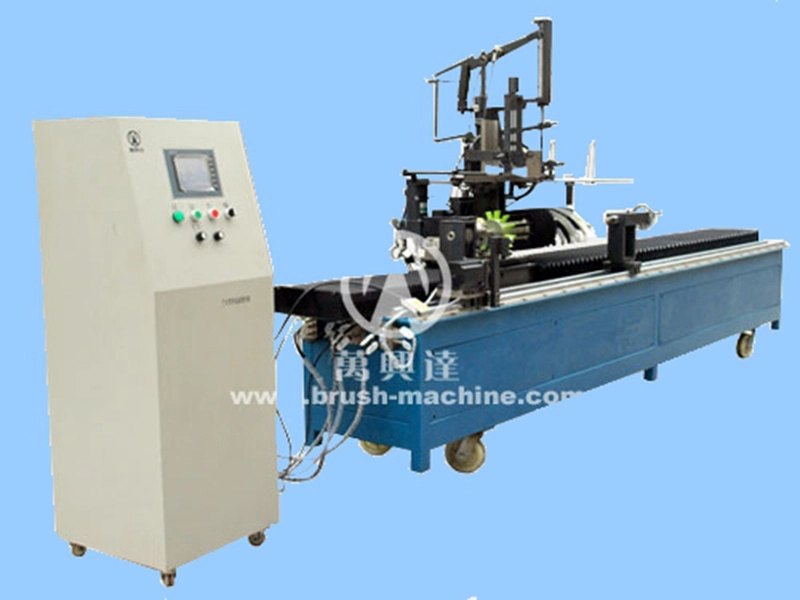

3-Axis CNC Long-Roller Brush Drilling and Tufting Machine WXD-3A-L001 1
3-Axis CNC Long-Roller Brush Drilling and Tufting Machine WXD-3A-L001 1

3-Axis CNC Long-Roller Brush Drilling and Tufting Machine WXD-3A-L001

Professional CNC long-roller machine for making big and long roller brushes, which are used for cleaning glass, marble, textile products, iron or steel products, etc.
5.0
Price:
EXW, FOB, CIF, CFR
Payment:
T/T, L/C
Package:
Wooden Case
Model:
WXD-3A-L001
Minimum:
1 Set
Delivery:
Around 45 days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    See how it makes big cylinder brush, on video;
    See how it drills holes for big roller brush, on video;
    See how it tufts for industrial brush, on video;

    Long Roller Brush Machine WXD-3A-L001

    Features of CNC Long-Roller Brush Drilling and Tufting Machine WXD-3A-L001:

    1) This CNC long-roller machine is suitable for making those long and big roller/cylindrical brushes with plastic or wooden bases, as well as industrial brushes which are used for cleaning glass and marble tiles, or for polishing fruits, textile, iron or steel products.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, as required by clients.

    3) With PLC(Programmable Logic Controller), this CNC long-roller brush machine operates precisely with excellent stability.

    4) The working table is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) Two clamps are installed on working table, which work alternatively and continually. Thus there's no need to stop to change brush handles, which increases productivity.

    6) Operator enters data for drilling/tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    7) This CNC long-roller machine is installed with a drilling head and a tufting head, with functions of both drilling and tufting. Please note that drilling head and tufting head do not work simultaneously. While drilling head is working, tufting head stops; while tufting head is operating, drilling head stops. It has features of precise positioning and high efficiency.

    8) Spare parts offered together this machine:
    1 pcs of Bristle Mouth;
    1 pcs of Cutting Blade;
    1 pcs of Bristle-Picker;
    5 pcs of Tufting Needles.

    making big industrial brushes

    making long roller brushes


    Technical Parameter for CNC Long-Roller Brush Drilling and Tufting Machine WXD-3A-L001:

     Maximum Drilling/Tufting Area (Standard)  X-axis x Y-axis x Z-axis = 360º x 2500mm x 150mm
    (Could be customized: 360º x 3500mm)
     Material of Brush Handles  Cylindrical plastic, cylindrical wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristles
     Length of Filaments (Outside Holes)  8mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  2mm - 7mm
     Colors of Brush Filaments   Single color or two colors
     Maximum Drilling/Tufting Speed  4 holes per second
     Specifications of Machine Body  1.2m(Width) x 1.5m(Height) x 3.7m(Length)
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                              Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 8000 holes
     Gross Weight  Around 700KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Packing  It'll be packed in wooden case.
    Wooden case for machine body: 100cm x 150cm x 370cm
    Wooden case for computer box: 60cm x 60cm x 140cm
