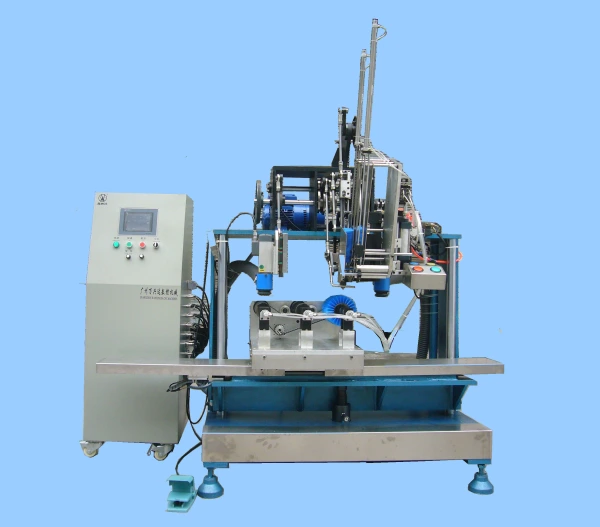

    3-Axis 3-Head Drilling and Tufting Machine WXD-3A3H01 2

    Features of 3-Axis 3-Head Drilling and Tufting Machine WXD-3A3H01:

    1) With two drilling heads and a tufting head, WXD-3A3H01 drills holes and tufts filaments simultaneously. It makes many kinds of brushes, as long as operator changes grippers. Please note that only a set of grippers is offered together with the machine, free of charge, other extra grippers will be charged.

    2) With servo motors, the maximum speed is 5 holes per second.

    3) With three grippers holding three brushes on working table. With automatic vacuum cleaner and automatic lubrication system.

    4) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by customers.

    5) With PLC(Programmable Logic Controller), which operates precisely, with excellent stability.

    6) Operator sets up programmings under either "Teach-Mode" or "Parameter-Mode". On the screen, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    Technical Parameter for 3-Axis 3-Head Drilling and Tufting Machine WXD-3A3H01:

     Standard Working Area of Working Table   X-axis x Y-axis x Z-axis = 400mm x 220mm x 360°
    (Other sizes could be customized)
     Material of Brush Handle  Plastic or wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle, horse hair
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm(plastic) , max.0.5mm (steel wire)
     Diameter of Holes  3mm - 6mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  5 holes per second
     Specifications of Machine Body  1.6m(Length)  x 1.5m(Width) x 1.5m(Height)
     Motor (Power System)  Servo motors
     Data Input  Teach-Mode: Operator manually puts tufting head into holes one by one, then presses “Enter” on hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

     Parameter-type: Operator manually enters digits for several columns.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 400KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  Either 1-phase 220V or 3-phase 380V; 50-60Hz; 600W
     Replaceable Grippers  FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
     Tufting Method  Staple-type, using round wires
     Packing  It’ll be packed into wood cases.
     Machine Body: 1.62m(Length)  x 1.52m(Width) x 1.52m(Height)
     Computer Box: 70cm(Length) x 70cm(Width) x 150cm(Height)
