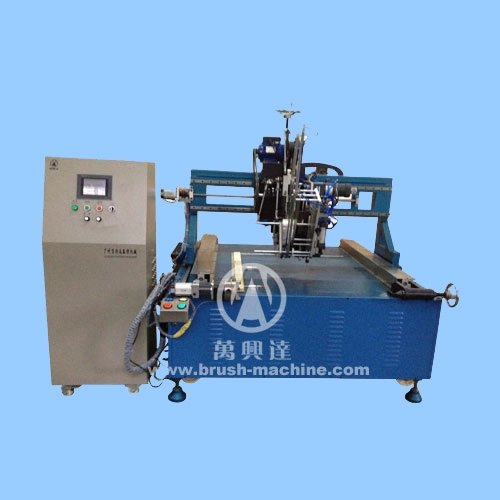

3-Axis 2-Head Brush Drilling and Tufting Machine WXD-3A2H05

Features of 3-Axis 2-Head Industrial Brush Drilling and Tufting Machine WXD-3A2H05 (Staple-Type):

1) This machine can make both roller brushes and flat brushes, as long as operator changes grippers accordingly. Click here to see how it makes industrial roller brushes.

2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by customers.

3) With PLC(Programmable Logic Controller), it operates precisely with excellent stability.

4) The worktable of this industrial brush machine is composed of straight-line guide rails and screw mandrels with high precision, which is quite stable and durable.

5) Operator sets up the programs under Parameter Mode, which takes only several minutes and is very convenient.



Technical Parameter for 3-Axis 2-Head Industrial Brush Drilling and Tufting Machine WXD-3A2H05:

Working Area of 3-Axis	X-axis x Y-axis x Z-axis = 400mm x 220mm x 360° (Other sizes could be customized)
Material of Brush Handle	Plastic, wood
Material of Brush Filaments	PP, PVC, PET, nylon, tampico, copper wire, stainless steel wire
Length of Filaments (Outside Holes)	10mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm
Diameter of Holes	3mm - 7mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	5 holes per second
Specifications of Machine Body	1.9m(L) x 2m(W) x 1.75m(H)
Motor (Power System)	With servo motors
Data Input for Tufting Positions	Teach-mode: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved. Parameter-mode: Operator manually enters digits for several columns.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 40 programs for making different models
Gross Weight	Around 350KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	Either 3-phase 380V or 1-phase 220V; 50-60Hz; 600W
Replaceable Grippers	Operator could make other similar brush models, as long as he changes grippers accordingly.
Tufting Method	Staple-type (round wires)
Packing	Wood cases  Wood case for machine-body: 2.2m x 2.2m x 1.95m  Wood case for computer: 0.65m x 0.65m x 1.5m
