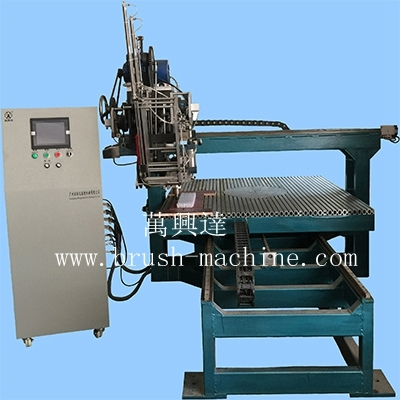

Multifunctional 3 axis 2 head plate brush & disc brush drilling and tufting machine WXD-3A2H08 1
Multifunctional 3 axis 2 head plate brush & disc brush drilling and tufting machine WXD-3A2H08 1

Multifunctional 3 axis 2 head plate brush & disc brush drilling and tufting machine WXD-3A2H08

This is WXD-3A2H-08, it has multi-function to produce plate brush and disc brush. It is cost efficient and make full use of the machine design.
5.0
Price:
FOB, CIF
Payment:
L/C, D/P, T/T
Package:
Wooden case
Model:
WXD-3A2H-08
Minimum:
1 Set
Delivery:
By sea
Country:
China
BrandName:
Wangxinda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    Multifunctional 3 axis 2 head plate brush & disc brush drilling and tufting machine WXD-3A2H08 2

    Features of 3 axis 2 head plate brush & disc brush drilling and tufting machine WXD-3A2H-08

    1> The WXD-3A2H08 with single drilling head, single tufting head, in Germany style.
    With plate brush working table at 1500mm (length) * 1500mm (width).
    With disc brush working table at 400mm diameter.

    2> When produce the plate brush or strip brush, the machine will drilling holes and tufting
    filament synchronously, or drilling holes firstly, tufting filament secondly.

    While in proudcing the disc brush, it should be drilling holes firstly and inserting bristle secondly.

    3> With PLC controller, it can make the brush in different pattern design by the operators.

    Technical Parameter for 3 axis 2 head plate brush & disc brush drilling and tufting machine WXD-3A2H-08

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis = 1500mm x 1500mm x 360°
     Material of Brush Handle  Plastic or wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  8mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 5mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  5 holes per second
     Specifications of Machine Body  1.62m x 1.52m x 1.9m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 10 programs for making different brushes.
     Gross Weight  Around 500KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 1000W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Mode  Staple-type (using round wires)
     Packing  It'll be packed into wood case.
     Wood case for machine body: 1620mm x 1520mm x 1900mm
     Wood case for computer box: 680mm x 680mm x 1400mm
