5-Axis Brush Tufting Machine WXD-5A-001 1
5-Axis Brush Tufting Machine WXD-5A-001 1

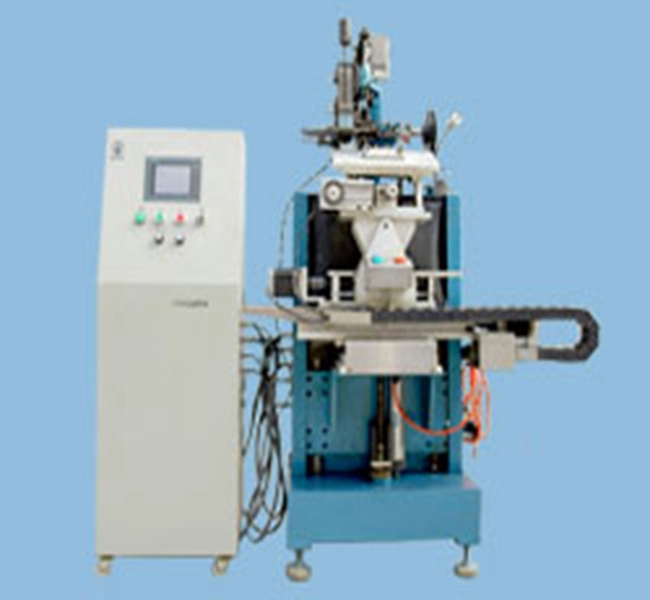

5-Axis Brush Tufting Machine WXD-5A-001

While using this 5-axis CNC brush tufting machine, please keep its electric box far away from magnetic field, otherwise it will be probably out of control.

    oops...!

    no product data.

    Go to homepage

    Features of 5-Axis Brush Tufting Machine WXD-5A-001:

    1) This 5-axis CNC brush tufting machine is suitable for making toilet brushes, roller brushes, fan-shaped brooms, scrubbing brushes, vacuum brushes, and other brushes with non-standard shape.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, as required by clients.

    3) With PLC(Programmable Logic Controller), this 5-axis brush making machine operates precisely with excellent stability.

    4) The working table is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) Two clamps are installed on working table, which work alternatively and continually. Thus there's no need to stop to change brush handles, which increases productivity.

    6) Operator enters data for drilling/tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    7) This 5-axis CNC brush making machine has functions of both drilling and tufting. With drilling head installed, it drills holes; replacing the drilling head with tufting head, it then tufts. It operates in the mode of four-location circumrotating. Only one-time installation is needed for either drilling or tufting, with features of precise positioning and high efficiency.


    Technical Parameter for 5-Axis Brush Tufting Machine WXD-5A-001:

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis x H-axis x A-axis = 350mm x 180mm x 100mm x 360°(30°for forward/backward movement and left/right movement)
     Material of Brush Handle  Plastic, wood; with flat, corrugated or fan-shaped surface, or roller-type, or with non-standard shape
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 6mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  5 holes per second
     Specifications of Machine Body  1.5m x 1.5m x 1.4m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 450KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Mode  Either "flat wire" or "staple"
     Packing  It'll be packed in wooden case.
     Wooden case for machine body: 1500mm x 1700mm x 1600mm
     Wooden case for computer box: 600mm x 600mm x 1400mm
