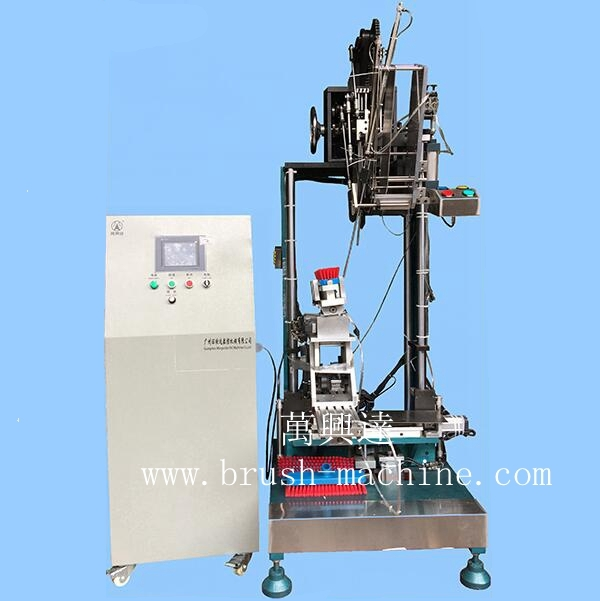

5 axis broom tufting machine WXD-5A-003 (Staple type)

Features of 5 axis broom tufting machine WXD-5A-003 (Staple  type)

1) WXD-5A-003， with flexible working axis, which can tufting filament in  various
of brush block item with angles. For the machine bristle box, it can network with stainless  wire, coper wire, plastic
bristle, tampico ect.

2) The plastic brush block should be with holes in mould in advance, for the thickness of brush block should be above 13mm.

3) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

4) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

Technical Parameter for 5 axis broom tufting machine WXD-5A-003 (Staple  type)

Standard Working Area of Working Table	X-axis x Y-axis x Z-axis x A-axis x H-axis = 400mm x 200mm x 100° x 40° x 120mm
Material of Brush Handle	Plastic, wood
Material of Brush Filaments	PP, nylon, copper wire, stainless steel wire, bristle
Length of Filaments (Outside Holes)	8mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm
Diameter of Holes	3mm - 7mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	6 holes per second
Specifications of Machine Body	1.6m x 1.5m x 2.3m
Motor (Power System)	With Panasonic servo motor
Data Input for Tufting Positions	Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.  Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 10 programs for making different brushes.
Gross Weight	Around 1230KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	3-phase 380V, 50-60Hz, 600W
Replaceable Clamp	FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
Tufting Mode	Staple-type (using round wires)
Packing	It'll be packed into wood case.  Wood case for machine body: 1650mm x 1550mm x 2400mm  Wood case for computer box: 680mm x 680mm x 1500mm
