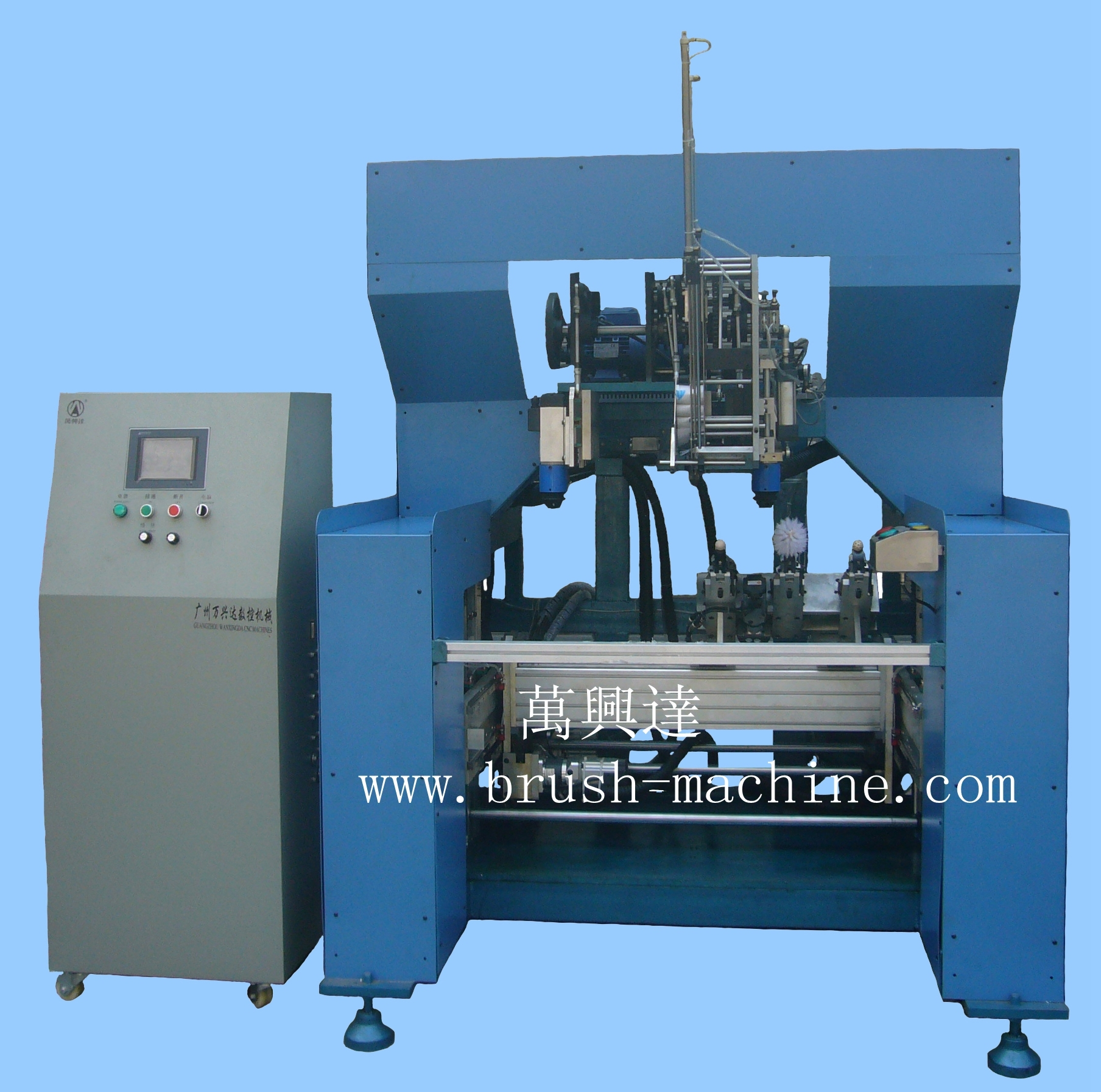

5 axis 3 head drilling and tufting machine WXD-5A3H-03

It can make wide range of brush once the operators changed the fixtures accordingly.


    no product data.

    Go to homepage
    5 axis 3 head drilling and tufting machine WXD-5A3H-03 2

    Features of 5 axis 3 head drilling and tufting machine WXD-5A3H-03

    1) WXD-5A3H-03 is the specialized in making plastic and wooden brush. It is drilling holes and tufting filament with angles, such as cloth brush, shoes brush, wood broom and so on.

    2) With mass production of 5 holes per second, 300RMP per minute.

    3) With 5.4 inch touchable screen, the interface is available in various languages, such as Chinese, English, Spanish, French, etc, as required by clients.

    4) With PLC (Programmable Logic Controller), this operates precisely with excellent stability.

    5) Usually the operators make the program for cylinder brush in “ Parameter- Mode”, one the screen, operators can insert , delete, adjust, copy, separate and move holes, it is easy to operate.

    Technical Parameter for 5 axis 3 head drilling and tufting machine WXD-5A3H-03

    Standard Working Area of Working Table

    X-axis*Y-axis*Z-axis*A-axis*H-axis = 100mm*320mm*100°*40°*120mmothers size could be customized)

    Material of brush base

    Plastic, wood

    Material of brush filaments

    PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc

    Length of filaments (outside holes)


    Diameter of holes


    Colors of filament

    Either single color or two colors

    Maximum tufting speed

    5 holes per second

    Specification of machine body

    1.68m(length) * 1.7m (width) * 2.02m (height)

    Motor ( power system)

    Servo motors

    Data input for tufting positions

    Teaching mode: Operators manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits mode: Operator manually enters digits (coordinates of X/Y axis) for tufting position.

    Touchable Screen

    With 5.4 inch touchable monitor controller, interface is in English or other languages required by clients, operating in dialogue-mode, which is quite simple and easy.

    Speed Adjusting

    Frequency-conversion stepless adjustable speed

    Qty of programs saved

    It saves totally 80 program for different brush item.

    Gross Weight

    Around 1100KGS


    PLC (Programmable Logic Controller)

    Power Supply

    Either 3-phase 380V , 50-60HZ,600W

    Replaceable Grippers

    FMS type. Operator could make other kinds of brushes, as long as he changes grippers.

    Tufting Method

    Staples type


    Packed into wood cases.

    Wood case for machine body 1.68m*1.7m*2.02m

    Wood case for computer box 0.66m*0.62m*1.56m
