5-Axis 3-Head Toilet Brush Machine WXD-5A3H02 1
5-Axis 3-Head Toilet Brush Machine WXD-5A3H02 1

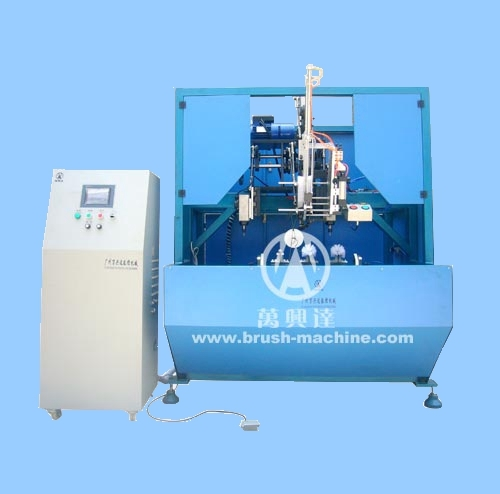

5-Axis 3-Head Toilet Brush Machine WXD-5A3H02

Want to make round toilet brushes? WXD-5A3H02 could be your best choice! It can make round toilet brushes, half-round toilet brushes, and hockey-type toilet brushes, as long as operator changes grippers.
5.0
Price:
EXW, FOB, CNF, CIF
Payment:
T/T, L/C
Package:
Wood Cases
Model:
WXD-5A3H02
Minimum:
1 Set
Delivery:
60 Days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    5-Axis 3-Head Brush Making Machine

    Features of 5-Axis 3-Head Toilet Brush Machine WXD-5A3H02:

    1) With two drilling heads and a tufting head, WXD-5A3H02 drills holes and tufts filaments simultaneously. It makes round toilet brushes, half-round toilet brushes, and hockey-type toilet brushes, as long as operator changes grippers. Please note that only a set of grippers is offered together with the machine, free of charge, other extra grippers will be charged.

    2) With servo motors, the maximum speed is 5 holes per second.

    3) With three grippers holding three toilet brushes on working table. With automatic vacuum cleaner and automatic lubrication system.

    4) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by customers.

    5) With PLC(Programmable Logic Controller), which operates precisely, with excellent stability.

    6) Operator sets up programmings under either "Teach-Mode" or "Parameter-Mode". On the screen, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    Technical Parameter for 5-Axis 3-Head Toilet Brush Machine WXD-5A3H02:

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis x A-axis x H-axis = 100mm x 320mm x 100° x 40° x 120mm (Other size could be customized)
     Material of Brush Handle  Plastic or wood; with flat, corrugated or fan-shaped surface, or cylindrical shape;
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle, horse hair
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 6mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  5 holes per second
     Specifications of Machine Body  1.6m(Length)  x 1.5m(Width) x 2.1m(Height)
     Motor (Power System)  Servo motors
     Data Input  Teach-Mode: Operator manually puts tufting head into holes one by one, then presses “Enter” on hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

     Parameter-type: Operator manually enters digits for several columns.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 770KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  Either 1-phase 220V or 3-phase 380V; 50-60Hz; 1KW
     Replaceable Grippers  FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
     Tufting Method  Staple-type, using round wires
     Packing  It’ll be packed into wood cases.
     Machine Body: 1.62m(Length)  x 1.52m(Width) x 2.12m(Height)
     Computer Box: 70cm(Length) x 70cm(Width) x 150cm(Height)
