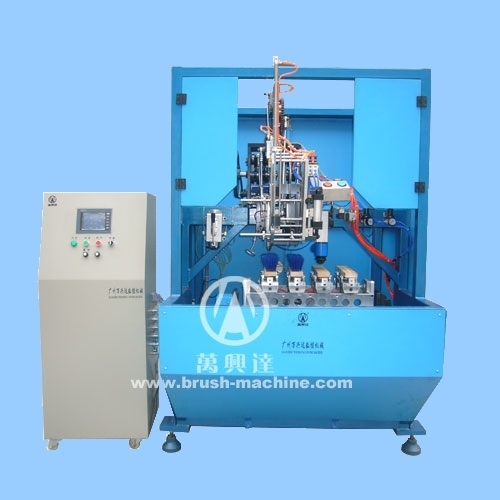

5-Axis 2-Head Broom Machine WXD-5A2H01

Standard Working Area of Working Table: X-axis x Y-axis x Z-axis x A-axis x H-axis = 100mm x 320mm x 100° x 40° x 120mm (Other size could be customized) It is suitable for making both wood and plastic brooms.


    no product data.

    Go to homepage

    wood broom machine

    Features of 5-Axis 2-Head Broom Machine WXD-5A2H01:

    1) This is a 5-axis 2-head machine of latest style, with a drilling head and a tufting head, staple-type (using round wires), with servo motors. It drills holes and tufts filaments at angles, used to make wood push brooms, plastic brooms and some other industrial brushes, etc.

    2)With four grippers holding four brooms on the working table. Under "Automatic Mode", the drilling head and tufting head continually work, non-stop.

    3)With manual lubrication system and automatic vacuum system.

    4) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    5) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    6) The working table of this broom machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    7) Operator enters data for drilling/tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    5-Axis 2-Head Broom Machine WXD-5A2H01 3

    Technical Parameter for 5-Axis 2-Head Broom Machine WXD-5A2H01:

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis x A-axis x H-axis = 100mm x 320mm x 100° x 40° x 120mm (Other size could be customized)
     Material of Broom Base  Plastic, wood; with flat, corrugated or fan-shaped surface, or roller-type, or with non-standard shape
     Material of Broom Filaments  PP, PVC, nylon, copper wire, stainless steel wire, pig bristle
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Broom Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 6mm
     Colors of Filaments   Either single color or two colors
     Maximum Speed  5 holes per second
     Specifications of Machine Body  1.5m (Length) x 1.5m (Width) x 2m (Height)
     Motor (Power System)  With servo motors.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 770KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 1000W
     Replaceable Grippers  FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
     Tufting Method  Staple-type (using round wires)
     Packing  Packed into wood cases.
     Wood case for machine body: 152cm x 152cm x 208cm;
     Wood case for computer: 63cm x 63cm x 158cm
