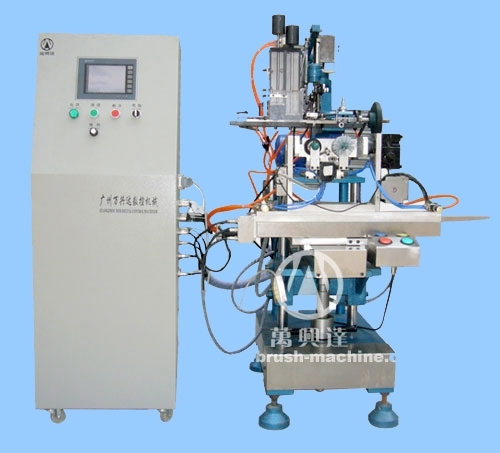

4-Axis Toilet Brush Tufting Machine WXD-4A002

It is a CNC 4-axis toilet brush tufting machine, also is suitable for tufting other fan-shaped brooms, scrubbing brushes and some industrial brushes with cambered surface, as long as operator changes clamps(grippers).

Price:

EXW, FOB, CIF, CFR

Payment:

T/T, L/C

Package:

Wooden Case

Model:

WXD-4A002

Minimum:

1 Set

Delivery:

30 Days

Country:

Guangzhou, China

BrandName:

Wanxingda

Inquiry

Write a Review

Features of 4-Axis Toilet Brush Tufting Machine WXD-4A002:

1) This is a CNC 4-axis toilet brush tufting machine, for filling holes with bristles. Pls note that the brush base should be pre-drilled, already with holes. Also it is suitable for tufting fan-shaped brooms, scrubbing brushes and some other industrial brushes with cambered surface, as long as operator changes clamps(grippers).

2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

4) The working table of this toilet brush tufting machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

5) Two clamps are installed on working table, which work alternatively and continually. Thus there's no need to stop to change brush handles, which increases productivity.

6) Operator enters data for tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

Technical Parameter for 4-Axis Toilet Brush Tufting Machine WXD-4A002:

Standard Working Area of Working Table	X-axis x Y-axis x Z-axis x H-axis = 350mm x 180mm x 100mm x 360°(or 30°)
Material of Brush Handle	Plastic, wood
Material of Brush Filaments	PP, nylon, copper wire, stainless steel wire, bristle
Length of Filaments (Outside Holes)	8mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm
Diameter of Holes	1.5mm - 5mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	5 holes per second
Specifications of Machine Body	1.5m x 1.5m x 1.4m
Motor (Power System)	With step-motor by default; also we could use servo-motor instead, if required by clients.
Data Input for Tufting Positions	Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved. Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 84 programs for making different brushes.
Gross Weight	Around 250KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	3-phase 380V, or single-phase 220V, 50-60Hz, 600W
Replaceable Clamp	FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
Tufting Mode	Either "flat wire" or "staple"
Packing	It'll be packed in wooden case. Wooden case for machine body: 1200mm x 1500mm x 1600mm Wooden case for computer box: 600mm x 600mm x 1400mm
