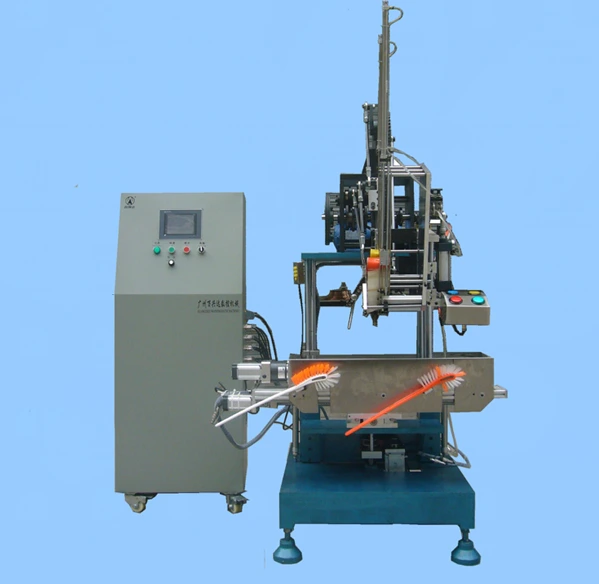

4-Axis Hockey Brush Tufting Machine WXD-4A-006

It is the best brushes machine for making hockey brushes, with double fixtures, in Germany style, max production speed up to 5 holes per second.


    no product data.

    Go to homepage

    4-Axis Hockey Brush Tufting Machine WXD-4A-006 2

    Features of 4 Axis Hockey Brush Tufting Machine WXD-4A-006 (Anchor Type)

    1)WXD-4A-006 is the latest style in 4 axis tufting machine series, with servo motors, used to tuft hockey brushes with filament in double colors. Please note that the plastic brushes block should be molded with holes in advance, since it is only a tufting machine without drilling holes function.

    2)With 5.4 inch touchable screen, the interface is available in various languages, such as Chinese, English, Spanish, Vietnamese, French, etc, as required by clients.

    3)With PLC (Programmable Logic Controller), this operates precisely with excellent stability.

    4)The working table of this hockey brushes tufting machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5)There are two grippers on working table, in the automatically working condition, which will work alternatively without stop.

    6)Operators enters data for tufting positions by either “Teaching Mode” or “ Digits Mode”. On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    Technical Parameter for 4-Axis Hockey Brush Tufting Machine WXD-4A-006

    Standard Working Area
    Of Working Table
    X-axis * Y-axis * Z-axis * H-axis
    = 350mm*180mm*100mm*360°
    Material of brush base
    Plastic, wood
    Material of brush filaments
    PP, PVC, PET, nylon, pig bristle, horse
    hair, tampico, etc
    Length of filaments (outside holes)
    Diameter of holes
    Colors of filament
    Either single color or two colors
    Maximum tufting speed
    5 holes per second
    Specification of machine body
    1.3m(length) * 1.1m (width) * 2.1m (height)
    Motor ( power system)
    Servo motors
    Data input for tufting positions
    Teaching mode: Operators manually puts tufting
    head into each hole, one by one, the position
    of these holes will be saved by computer one by one.
    By this way, all data for tufting position has been entered
    and saved.

    Digits mode: Operator manually enters digits
     (coordinates of X/Y axis) for tufting position.
    Touchable Screen
    With 5.4 inch touchable monitor controller, interface
    is in English or other languages required by clients,
    operating in dialogue  mode, which is quite simple and easy.
    Speed Adjusting
    Frequency-conversion stepless adjustable speed
    Qty of programs saved
    It saves totally 84 programs for making different brushes.
    Gross Weight
    Around 370KGS
    PLC (Programmable Logic Controller)
    Power Supply
    Either 3-phase 380V or 1-phase 220V, 50-60HZ,600W
    Replaceable Grippers
    FMS type. Operator could make other kinds of brushes,
    as long as he changes grippers.
    Tufting Method
    Anchor type (using flat wire)
    Packed into wood cases.
    Wood case for machine body 1.3m*1.1m*2.1m
    Wood case for computer box 0.8m*0.8m*1.56m
