4-Axis Toilet Brush Tufting Machine WXD-4A-001 1
4-Axis Toilet Brush Tufting Machine WXD-4A-001 1

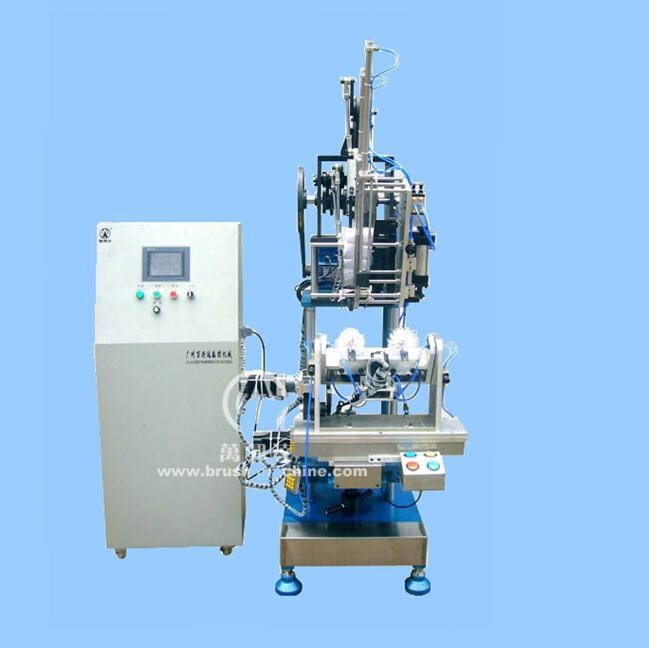

4-Axis Toilet Brush Tufting Machine WXD-4A-001

This is a CNC 4-axis tufting machine of latest style, staple-type(round wire), with servo motors, used to tuft round toilet brushes with filaments in two colors. Please note that the plastic brush blocks must be molded with holes in advance, as it's only
5.0
Price:
EXW, FOB, CNF, CIF
Payment:
T/T, L/C
Package:
Wood Cases
Model:
WXD-4A-001
Minimum:
1 Set
Delivery:
40 Days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Features of 4-Axis Toilet Brush Tufting Machine WXD-4A-001 (Staple-Type):

    1) WXD-4A-001 is a 4-axis tufting machine of latest style, staple-type(round wire), with servo motors, used to tuft round toilet brushes with filaments in two colors. Please note that the plastic brush blocks must be molded with holes in advance, as it's only a tufting machine, without drilling function. (You might be interested to see another machine with functions of both drilling and tufting, also making round toilet brushes.)

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spanish, Vietnamese, French, etc, as required by customers.

    3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    4) The working table of this toilet brush tufting machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) There are two grippers on working table, which work alternatively and continually, non-stop.

    6) Operator enters data for tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    tufting toilet brushes

    Technical Parameter for 4-Axis Toilet Brush Tufting Machine WXD-4A-001:

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis x H-axis = 350mm x 180mm x 100mm x 360°(or 30°)
     Material of Brush Bases  Plastic, wood
     Material of Brush Filaments  PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc.
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  2.5mm - 5mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  6 holes per second
     Specifications of Machine Body  1.20m(Length) x 1m(Width) x 2.05m(Height)
     Motor (Power System)  Servo motors
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other languages required by customers, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 370KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  Either 3-phase 380V or 1-phase 220V, 50-60Hz, 600W
     Replaceable Grippers  FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
     Tufting Method  Staple-type (using round wires)
     Packing  Packed into wood cases.
     Wood case for machine body: 1.23m x 1.07m x 2.08m
     Wood case for computer box: 0.80m x 0.80m x 1.56m
