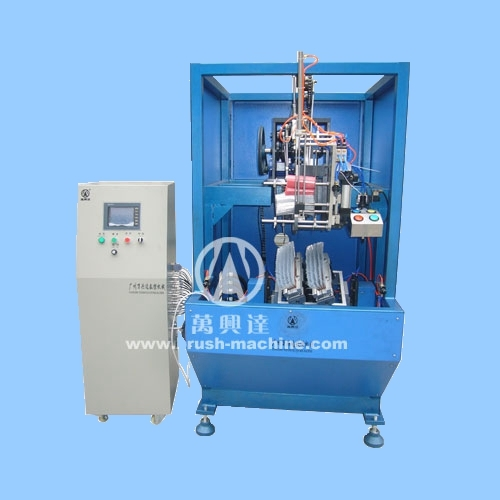

4-Axis Broom Tufting Machine WXD-4A-003

WXD-4A-003 is a 4-axis broom tufting machine of latest style, staple-type(using round wires). While tufting brooms, the maximum speed could be 5 holes per second, and it tufts filaments at angles. The maximum length of folded filaments is 12cm. Click to f


    no product data.

    Go to homepage

    Features of 4-Axis Broom Tufting Machine WXD-4A-003 (Staple-Type):

    1) This is a CNC 4-axis broom tufting machine of latest style, staple-type. It tufts filaments at angles. Please note the plastic broom base should be moulded with holes in advance. Also it is suitable for tufting fan-shaped brooms, scrubbing brushes and some other industrial brushes with cambered surface, as long as operator changes grippers.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by customer.

    3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    4) The working table of this broom machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) Two grippers are installed on working table, which work alternatively and continually.

    6) Operator enters data for tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    broom machine

    Technical Parameter for 4-Axis Broom Tufting Machine WXD-4A-003:

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis x H-axis = 350mm x 180mm x 100mm x 360°(or 30°)
     Material of Broom Base  Plastic, wood
     Material of Broom Filaments  PP, nylon, copper wire, stainless steel wire, pig bristle
     Length of Filaments (Outside Holes)  8mm - 120mm
     Diameter of Broom Filaments  0.08mm - 1.2mm
     Diameter of Holes  2mm - 5mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  5 holes per second
     Specifications of Machine Body  1.5m x 1.5m x 1.4m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 250KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Grippers  FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
     Tufting Mode  Staple-type (using round wires)
     Packing  Packed into wood cases.
     Wood case for machine body: 1200mm x 1500mm x 1600mm
     Wood case for computer box: 600mm x 600mm x 1400mm
