4-Axis 2-Head Broom Tufting Machine WXD-4A2H02 1
4-Axis 2-Head Broom Tufting Machine WXD-4A2H02 1

4-Axis 2-Head Broom Tufting Machine WXD-4A2H02

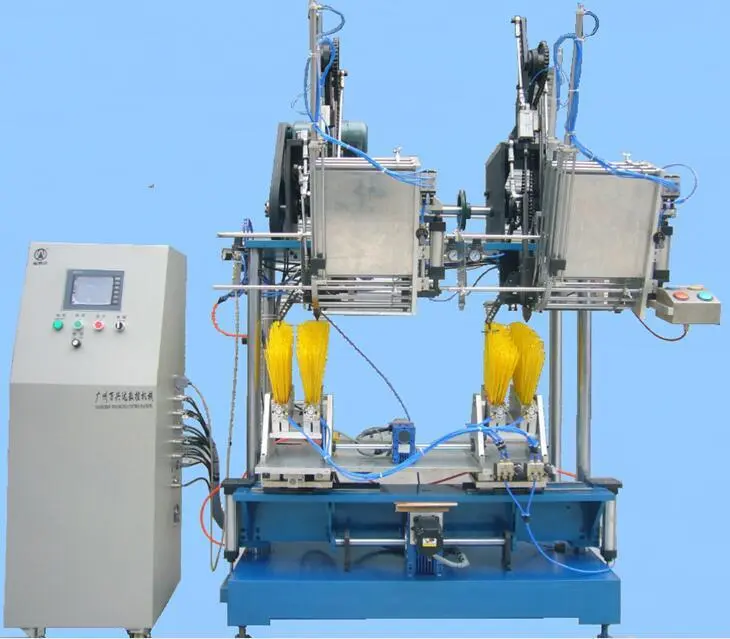

With extra-large size, with two tufting heads, WXD-4A2H02 is used to tuft big plastic brooms with long bristles. The maximum length of folded bristles allowed is 260mm, and its maximum speed is two holes per second. Other size could be customized.


    no product data.

    Go to homepage
    broom making machine

    Features of 4-Axis 2-Head Broom Tufting Machine WXD-4A2H02 (Staple-Type):

    1) With two tufting heads, WXD-4A2H02 is used to make big plastic brooms with very long bristles, the maximum length of folded bristles could be 260mm. The tufting method is staple-type, using round wires.

    2) While making big brooms with long bristles, its speed is not really fast, it's only about two holes per second.

    3) With automatic vacuum system and manual lubrication system.

    4) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    5) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    6) The working table of this broom making machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    7) Operator sets up the new programming under "Teach" mode. He could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    broom making machine

    Technical Parameter for 4-Axis 2-Head Broom Making Machine WXD-4A2H02:

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis x A-axis = 380mm x 180mm x 90° x 100mm (Other size could be customized)
     Material of Broom Base  Plastic or wood; with flat, corrugated or fan-shaped surface, or cylindrical shape;
     Material of Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  10mm - 260mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  1.5mm - 5mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  2 holes per second (because the bristles are too long)
     Specifications of Machine Body  1.8m x 2m x 1.4m
     Motor (Power System)  With servo motors
     Data Input for Tufting Positions                                       Teach-Mode: Operator manually puts tufting head into holes one by one, then presses “Enter” on the hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 500KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Grippers  FMS type. Operator could make other smaller brooms, as long as he changes grippers.
     Tufting Mode  Staple-type (using round wires)
     Packing  It’ll be packed into wood cases.
     Machine Body: 180cm(Length) x 140cm(Width) x 200cm(Height)
     Computer Box: 63cm(Length) x 61cm(Width) x 145cm(Height)
