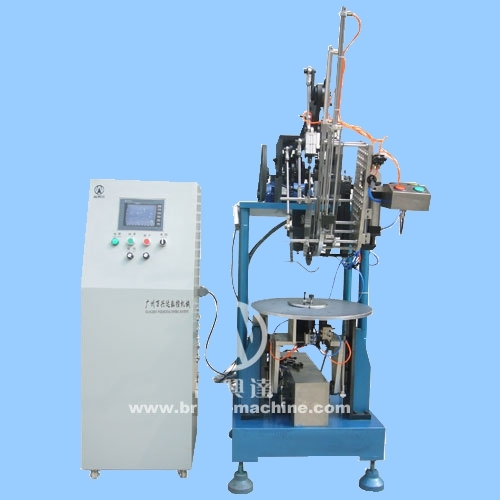

Features of 3-Axis Disc Brush Tufting Machine WXD-3A-002:
1) WXD-3A-002 is used to tuft disc brushes, of which the plastc bases should be pre-molded with holes. Actually, WXD-3A-002 can also make small roller brushes, brushes with flat surfaces, and other brushes with curved surfaces, as long as operator changes grippers accordingly.
2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.
3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.
4) The working table of the disc brush machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.
5) Operator enters data for tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.
6) This disc brush machine has functions of both drilling and tufting. With drilling head installed, it drills holes; replacing the drilling head with tufting head, it then tufts.
Technical Parameter for 3-Axis Disc Brush Tufting Machine WXD-3A-002:
|Standard Working Area of Working Table||
X-axis x Y-axis x Z-axis = 350mm x 180mm x 360°
(Maximum size customized: 500mm x 500mm x 360°)
|Material of Brush Handle||Plastic, wood|
|Material of Brush Filaments||PP, nylon, copper wire, stainless steel wire, bristle|
|Length of Filaments (Outside Holes)||8mm - 120mm|
|Diameter of Brush Filaments||0.08mm - 1.2mm|
|Diameter of Holes||2mm - 7mm|
|Colors of Filaments||Either single color or two colors|
|Maximum Tufting Speed||5 holes per second|
|Specifications of Machine Body||1.5m x 1.5m x 1.4m|
|Motor (Power System)||With step-motor by default; also we could use servo-motor instead, if required by clients.|
|Data Input for Tufting Positions||
Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.
Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
|Touchable Screen||With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.|
|Speed Adjusting||Frequency-conversion stepless-adjustable speed|
|Qty of Programs Saved||It saves totally 84 programs for making different brushes.|
|Gross Weight||Around 250KGS|
|Programming||PLC (Programmable Logic Controller)|
|Power Supply||3-phase 380V, or single-phase 220V, 50-60Hz, 600W|
|Replaceable Clamp||FMS type. Operator could make other kinds of brushes, as long as he changes clamps.|
|Tufting Mode||Staple-type (using round wires)|
It'll be packed into wood case.
Wood case for machine body: 1000mm x 1200mm x 1600mm
Wood case for computer box: 600mm x 600mm x 1400mm
