3-Axis 3-Head Roller Brush Machine WXD-3A3H01 1
3-Axis 3-Head Roller Brush Machine WXD-3A3H01 1

3-Axis 3-Head Roller Brush Machine WXD-3A3H01

This is a CNC 3-axis 3-head machine, with two drilling heads and a tufting head, which drills holes and tufts filaments simultaneously. It's used to make roller brushes and cylindrical brushes. However, it can also make other brushes with curved surfaces,
5.0
Price:
EXW, FOB, CIF, CFR
Payment:
T/T, L/C
Package:
Wood Cases
Model:
WXD-3A3H01
Minimum:
1 Set
Delivery:
45 Days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Features of 3-Axis 3-Head Roller Brush Machine WXD-3A3H01:

    1) With two drilling heads and a tufting head, this 3-axis 3-head machine is used to make roller brushes, cylindrical brushes and other brushes with cambered surfaces.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by customers.

    3) With PLC(Programmable Logic Controller), it operates precisely with excellent stability.

    4) The working table of this roller brush machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) Operator enters data for drilling/tufting positions by "Parameter-Mode". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

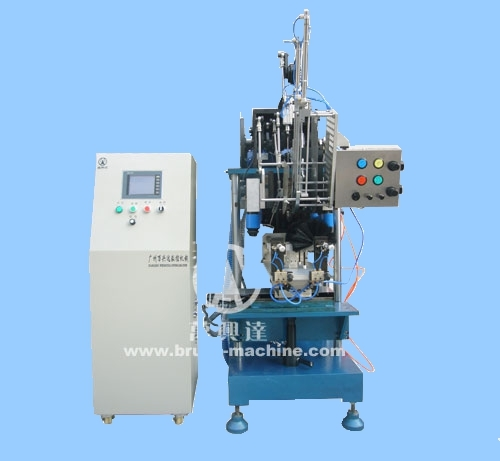

    roller brush machine

    Technical Parameter for 3-Axis 3-Head Roller Brush Machine WXD-3A3H01:

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis = 680mm x 220mm x 360°
    (Other sizes could be customized)
     Material of Brush Handle  Plastic, wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  2mm - 7mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  5 holes per second
     Specifications of Machine Body  1.5m x 1.5m x 1.4m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                                      Teach-mode: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Parameter-mode: Operator manually enters digits for several columns.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 500KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  Either 3-phase 380V or 1-phase 220V, 50-60Hz, 600W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Method  Staple (using round wires)
     Packing  Wood cases
