2-Axis Long-Roller Brush Drilling and Tufting Machine WXD-2A-L03 1
2-Axis Long-Roller Brush Drilling and Tufting Machine WXD-2A-L03 1

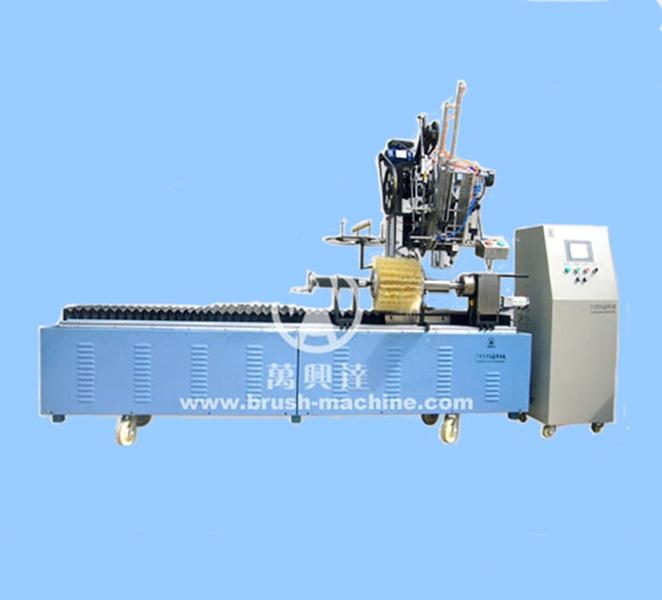

2-Axis Long-Roller Brush Drilling and Tufting Machine WXD-2A-L03

It's used to make those big and long roller brushes with wood or plastic bases. With servo motors, the maximum speed is 5 holes per second, however, for daily use, it's suggested that operator keep the speed at about 3 holes per second, so as not to short
5.0
Price:
EXW, FOB, CNF, CIF
Payment:
T/T, L/C
Package:
Wood Cases
Model:
WXD-2A-L03
Minimum:
1 Set
Delivery:
50 Days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Features of 2-Axis Long-Roller Brush Drilling and Tufting Machine WXD-2A-L03:

    1) This is a long-roller machine of latest style, with a drilling head and a tufting head, used to make those big and long roller brushes with plastic or wood bases. Please note that it doesn't drill holes and tuft filaments simultaneously, it drills holes at first, and tufts filaments secondly.

    2) With servo motors, the maximum speed is 5 holes per second.

    3) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, as required by customers.

    4) With PLC(Programmable Logic Controller), this long-roller brush machine operates precisely with excellent stability.

    5) The working table is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    6) Mostly, operator enters data for drilling/tufting positions by "Parameter-Mode". On the screen, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    long-roller brush machine

    Technical Parameter for 2-Axis Long-Roller Brush Making Machine WXD-2A-L03:

     Maximum Drilling/Tufting Area (Standard)  X-axis x Y-axis = 360º x 1500mm
    (Other bigger size could be customized)
     Material of Roller Brush Bases  Cylindrical shape, plastic or wood material
     Material of Brush Filaments  PP, PVE, PET, tampico, pig bristles, horse hair, etc.
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  2mm - 7mm
     Colors of Brush Filaments   Either single color or two colors
     Maximum Drilling/Tufting Speed  5 holes per second
     Specifications of Machine Body  2.5m(Length) x 1.1m(Width) x 1.9m(Height)
     Motor (Power System)  With servo motors
     Data Input for Tufting Positions                              Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 8000 holes
     Gross Weight  Around 1000KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  Either 3-phase 380V or 1-phase 220V, 50-60Hz, 600W
     Replaceable Grippers  FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
     Packing  It'll be packed into wood cases.
    Wood case for machine body: 3m(L) x 1.20m(W) x 2.1m(H)
    Wood case for computer box: 60cm x 60cm x 140cm
