2-Axis Brush Tufting Machine WXD-2A-003 1
2-Axis Brush Tufting Machine WXD-2A-003 1

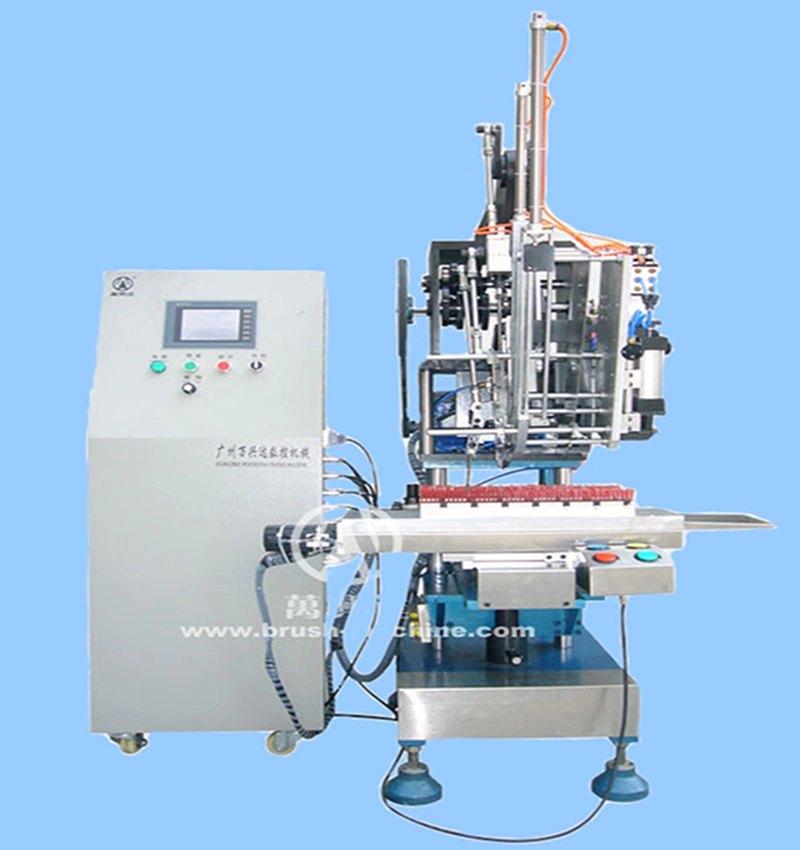

2-Axis Brush Tufting Machine WXD-2A-003

It's used to tuft entrance mats. It can also tuft other brushes with flat surfaces, as long as operator changes grippers. Please note the plastic brush bases must be moulded with holes in advance. It's used only for tufting (filling holes with bristles),
5.0
Price:
EXW, FOB, CNF, CIF
Payment:
T/T, L/C
Package:
Wood Cases
Model:
WXD-2A-003
Minimum:
1 Set
Delivery:
40 Days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Brush Machine WXD-2A-003

    Features of 2-Axis Brush Tufting Machine WXD-2A-003 (Staple-Type):

    1) It's a CNC 2-axis brush tufting machine of latest style, staple-type, with servo motors, used to tuft entrance mats. It can also tuft other brushes with flat surfaces, as long as operator changes grippers. Please note the plastic brush bases must be moulded with holes in advance. It's used only for tufting (filling holes with bristles), it cannot drill holes.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    4) The working table is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) Two grippers are installed on working table, which work alternatively and continually. Thus there's no need to stop to change brush handles, which increases productivity.

    6) Operator enters data for tufting positions under "Teach-Mode". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    Technical Parameter for 2-Axis Brush Tufting Machine WXD-2A-003:

     Standard Working Area of Working Table  X-axis x Y-axis = 350mm x 180mm
     Other size could be customized.
     Material of Brush Handle  Plastic, wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, pig bristles
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  2mm - 7mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  6 holes per second
     Specifications of Machine Body  1.20m(Length) x 0.9m(Width) x 1.65m(Height)
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by customer.
     Data Input for Tufting Positions                                      Teach-Mode: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 300KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Grippers  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Method  Staple-type (using round wires)
     Packing  It'll be packed into wood cases.
     Wood case for machine body: 1.23m(L) x 0.93m(W) x 1.72m(H)
     Wood case for computer box: 0.62m(L) x 0.62m(W) x 1.45m(H)
