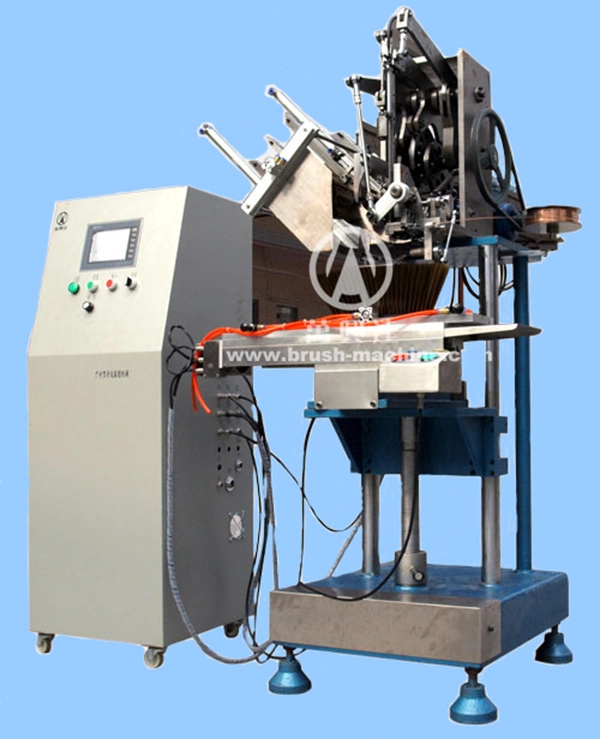

2-Axis Broom Tufting Machine WXD-2A-002 1
2-Axis Broom Tufting Machine WXD-2A-002 1

2-Axis Broom Tufting Machine WXD-2A-002

With step-motor by default; also we could use servo-motor instead, if required by clients. The working table of this broom making machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    oops...!

    no product data.

    Go to homepage

    Take a look at 2-axis high speed broom making machine, on video;
    Take a look at 2-axis broom tufting machine(general speed), on video;
    Take a look at broom trimming machine, on video.

    2-Axis Broom Tufting Machine WXD-2A-002 2

    Features of 2-Axis Broom Tufting Machine WXD-2A-002 (Anchor-Type):

    1) This 2-Axis brush tufting Machine WXD-2A-002 is suitable for making plastic and wooden brooms (the broom bases should be pre-drilled, already with holes), also, is suitable for making scrubbing brushes, and flat-surface toothbrushes, etc.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    4) The working table of this broom making machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) Two clamps are installed on working table, which work alternatively and continually. Thus there's no need to stop to change brush handles, which increases productivity.

    6) Operator enters data for tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    7) Extra spare parts offered together with the broom machine:

    1 pcs of bristle-mouth,
    1 pcs of bristle-picker,
    5 pcs of tufting needles.

    2-Axis Broom Tufting Machine WXD-2A-002 3

    Technical Parameter for 2-Axis Broom Tufting Machine WXD-2A-002:

     Standard Working Area of Working Table  X-axis x Y-axis = 350mm x 180mm
    (Maximum Size customized: 500mm x 500mm)
     Material of Brush Handle  Plastic, wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  8mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  2mm - 7mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  5 holes per second
     Specifications of Machine Body  1.5m x 1.5m x 1.4m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 250KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Mode  Anchor-type (using flat wires)
     Packing  It'll be packed into wooden cases.
     Wooden case for machine body: 1000mm x 1200mm x 1600mm
     Wooden case for computer box: 600mm x 600mm x 1400mm
