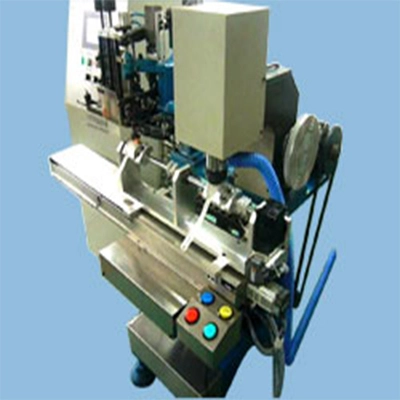

2-Axis 2-Head Brush Drilling and Tufting Machine WXD-2A2H01 1
2-Axis 2-Head Brush Drilling and Tufting Machine WXD-2A2H01 1

2-Axis 2-Head Brush Drilling and Tufting Machine WXD-2A2H01

With a drilling head and a tufting head, this machine is suitable for making brushes with flat-surface, including plastic scrubbing brushes, wooden or plastic broom, and some other industrial brushes.

    oops...!

    no product data.

    Go to homepage

    Pls click here to see how it makes wooden brushes with stainless steel wires, on video.

    Features of 2-Axis 2-Head Brush Drilling and Tufting Machine WXD-2A2H01:

    1) With a drilling head and a tufting head, this 2-axis 2-head brush machine WXD-2A2H01 is suitable for making plastic and wooden brushes with flat surface, including brooms, scrubbing brushes, cleaning brushes, shoes brushes and other small industrial brushes, etc.

    2) Two heads work simultaneously. After a working cycle, operator needs to manually pick out the finished brushes.

    3) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Vietnamese, Spain, Russian, etc, as required by clients.

    4) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    5) The working table of this scrubbing brush machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    6) Operator enters data for drilling/tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    Technical Parameter for 2-Axis 2-Head Brush Drilling and Tufting Machine WXD-2A2H01:

     Standard Working Area of Working Table  X-axis x Y-axis = 350mm x 180mm
    (Maximum Size customized: 500mm x 500mm)
     Material of Brush Handle  Plastic, wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  8mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  2mm - 7mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  6 holes per second
     Specifications of Machine Body  1.5m x 1.5m x 1.4m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                                       Teaching-type: Operator manually puts tufting head into holes one by one, then presses “Enter” on hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 300KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Mode  Either "flat wire" or "staple"
     Packing  Wood cases
