2-Axis High-Speed Broom Tufting Machine WXD-2A-005 1
2-Axis High-Speed Broom Tufting Machine WXD-2A-005 1

2-Axis High-Speed Broom Tufting Machine WXD-2A-005

It's used to tuft flat plastic brooms, the maximum tufting speed is 6.3 holes per second. Please note that the plastic broom blocks must be molded with holes in advance.
5.0
Price:
EXW, FOB, CNF, CIF
Payment:
T/T, L/C
Package:
Wood Cases
Model:
WXD-2A-005
Minimum:
1 Set
Delivery:
30 Days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    Features of 2-Axis High-Speed Broom Tufting Machine WXD-2A-005 (Flat-Wire):

    1) It's used to tuft flat plastic brooms, the maximum tufting speed is 6.3 holes per second. Please note that the plastic broom blocks must be molded with holes in advance. It can also tuft other flat brushes, as long as operator changes grippers accordingly.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    4) The working table of this broom machine is composed of straight-line guide rails and screw mandrels with high precision, which is quite stable and durable.

    5) Two grippers are installed on worktable, which work alternatively and continually. Thus there's no need to stop to change brush blocks, which increases productivity.

    6) Operator enters data for tufting positions under "Teach Mode". On operation interface, operator could insert, delete, adjust, copy, divide and move holes, which is quite simple and convenient.

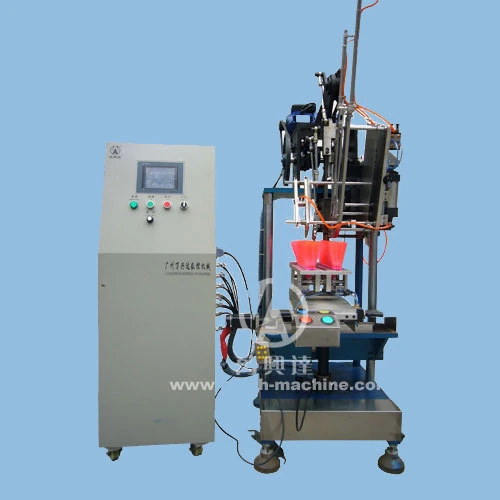

    broom machine WXD-2A-005

    Technical Parameter for 2-Axis High-Speed Broom Tufting Machine WXD-2A-005:

     Standard Working Area of 2-Axis  X-axis x Y-axis = 400mm x 200mm
    (Other bigger size could be customized)
     Material of Brush Handle  Plastic, wood
     Material of Brush Filaments  PP, PVC, PET, nylon
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 6mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  6.3 holes per second
     Specifications of Machine Body  1.20m(L) x 0.90m(W) x 1.68m(H)
     Motor (Power System)  With step motors by default; also we could use servo motors instead, if required by clients.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 80 programs for different broom models
     Gross Weight  Around 300KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  1-phase 220V or 3-phase 380V, 50-60Hz, 600W
     Replaceable Grippers  Operator could make other flat brush models, as long as he changes grippers accordingly.
     Tufting Mode  Anchor-type (using flat wires)
     Packing  It'll be packed into wooden cases.
     Wood case for machine body: 1.23m x 0.93m x 1.71m
     Wood case for computer: 0.63m x 0.63m x 1.45m
