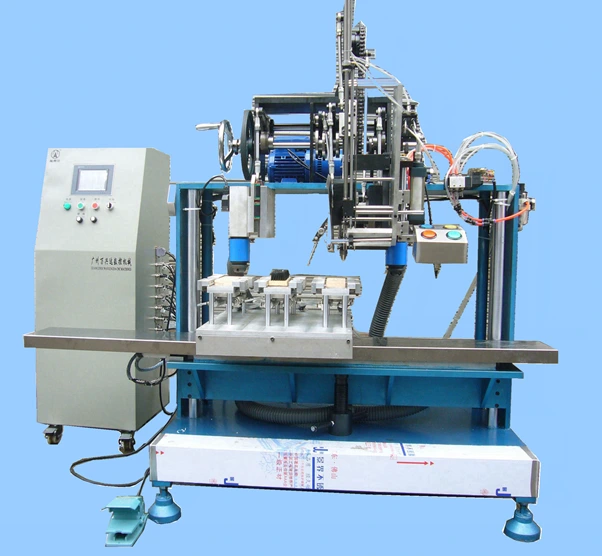

2-Axis 3-Head Drilling and Tufting Machine WXD-2A3H01

Features of 2-Axis 3-Head Drilling and Tufting Machine WXD-2A3H01:

1) With two drilling heads and a tufting head, WXD-2A3H01 drills holes and tufts filaments simultaneously. It makes many kinds of flat brushes with straight tufting, as long as operator changes grippers. Please note that only a set of grippers is offered together with the machine, free of charge, other extra grippers will be charged.

2) With servo motors, the maximum speed is 5 holes per second.

3) With three grippers holding three brushes on working table. With automatic vacuum cleaner and automatic lubrication system.

4) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by customers.

5) With PLC(Programmable Logic Controller), which operates precisely, with excellent stability.

6) Operator sets up programmings under either "Teach-Mode" or "Parameter-Mode". On the screen, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

Technical Parameter for 2-Axis 3-Head Drilling and Tufting Machine WXD-2A3H01:

Standard Working Area of Working Table	X-axis x Y-axis = 400mm x 200mm (Other size could be customized)
Material of Brush Handle	Plastic or wood
Material of Brush Filaments	PP, nylon, copper wire, stainless steel wire, bristle, horse hair
Length of Filaments (Outside Holes)	10mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm(plastic) , max.0.5mm (steel wire)
Diameter of Holes	3mm - 6mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	5 holes per second
Specifications of Machine Body	1.6m(Length)  x 1.5m(Width) x 1.5m(Height)
Motor (Power System)	Servo motors
Data Input	Teach-Mode: Operator manually puts tufting head into holes one by one, then presses “Enter” on hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.  Parameter-type: Operator manually enters digits for several columns.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 84 programs for making different brushes.
Gross Weight	Around 400KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	Either 1-phase 220V or 3-phase 380V; 50-60Hz; 600W
Replaceable Grippers	FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
Tufting Method	Staple-type, using round wires
Packing	It’ll be packed into wood cases.  Machine Body: 1.62m(Length)  x 1.52m(Width) x 1.52m(Height)   Computer Box: 70cm(Length) x 70cm(Width) x 150cm(Height)
