2-Axis 2-Head Brush Drilling and Tufting Machine WXD-2A2H03

It's used to make industrial strip brushes which are 2m long. With four grippers holding four strip brushes on worktable, it drills holes and tufts filaments simultaneously. With servo motors,the maximum speed is 5 holes per second.
5.0
Price:
EXW, FOB, CNF, CIF
Payment:
T/T, L/C
Package:
Wood Cases
Model:
WXD-2A2H03
Minimum:
1 Set
Delivery:
50 Days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Features of 2-Axis 2-Head Brush Drilling and Tufting Machine WXD-2A2H03 (Staple-type):

    1) It's used to make industrial strip brushes which are 2m long. With four grippers holding four strip brushes on worktable, it drills holes and tufts filaments simultaneously. With servo motors, the maximum speed is 5 holes per second. It can also make other flat brushes, as long as operator changes grippers accordingly.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by customers.

    3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    4) The worktable of this strip brush machine is composed of straight-line guide rails and screw mandrels with high precision, which is quite stable and durable.

    5) Four grippers are installed on worktable, which work alternatively and continually. Thus there's no need to stop to change the finished brush blocks, which increases productivity.

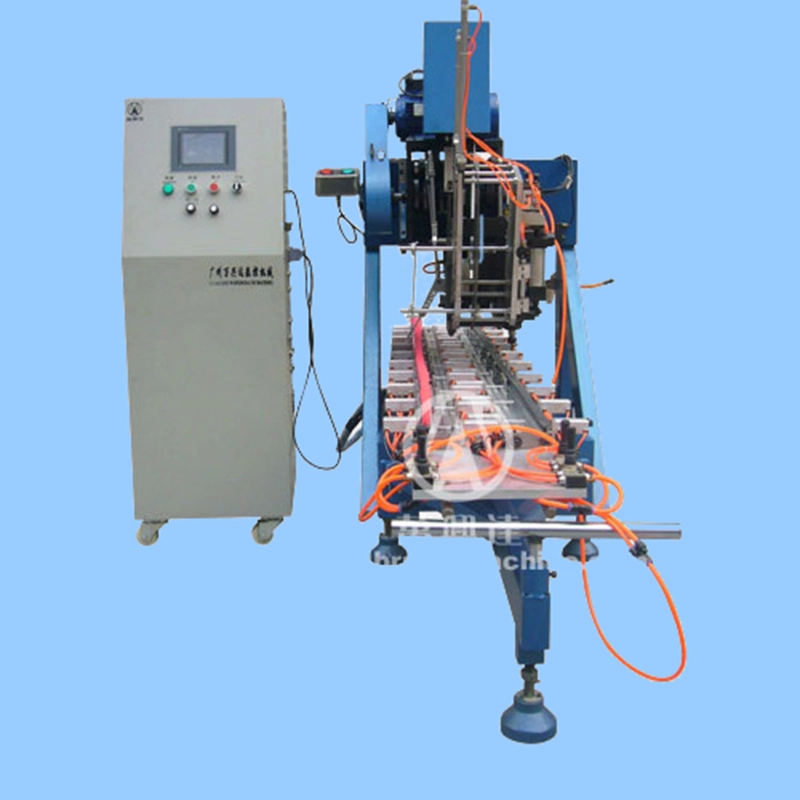

    strip brush machine


    Technical Parameter for 2-Axis 2-Head Strip Brush Drilling and Tufting Machine WXD-2A2H03:


     Working Area of 2-Axis  X-axis x Y-axis = 80mm x 2000mm
    (Other bigger size could be customized)
     Material of Brush Handle  Plastic, wood
     Material of Brush Filaments  PP, PVC, PET, nylon, tampico, stainless steel wire, copper wire
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 6mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  5 holes per second
     Specifications of Machine Body  3.5m(L) x 0.9m(W) x 1.7m(H)
     Motor (Power System)  With servo motors.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 40 programs for different brush models
     Gross Weight  Around 560KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  Either 1-phase 220V or 3-phase 380V; 50-60Hz; 600W
     Replaceable Grippers  Operator could make other flat brush models, as long as he changes grippers accordingly.
     Tufting Mode  Staple-type (using round wires)
     Packing  It'll be packed into wood cases.
     Wood case for machine body: 3.5m(L) x 0.9m(W) x 1.7m(H)
     Wood case for computer: 0.63m(L) x 0.63m(W) x 1.45m(H)
