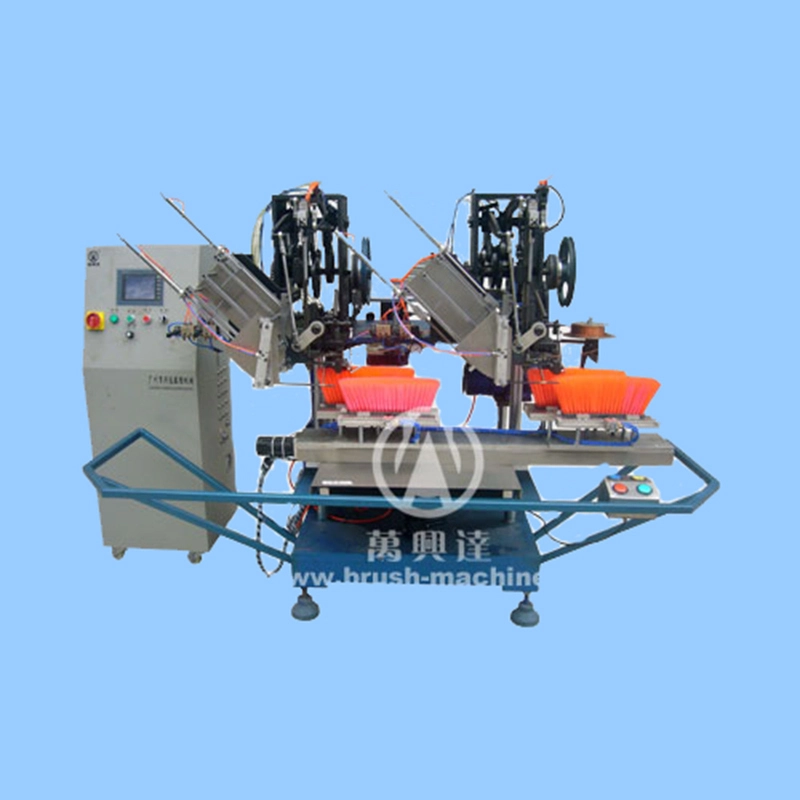

2-Axis 2-Head Broom Tufting Machine WXD-2A2H02

Features of 2-Axis 2-Head Broom Tufting Machine WXD-2A2H02 (Flat Wire):

1) This is a CNC 2-axis 2-head broom tufting machine with new Cam system, anchor-type (flat-wire), with servo motors, with four grippers holding four brooms on worktable. Two tufting heads work simultaneously.

2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

4) The worktable of this broom machine is composed of straight-line guide rails and screw mandrels with high precision, which is quite stable and durable.

5) Four grippers are installed on worktable, which work alternatively and continually. Thus there's no need to stop to change brush handles, which increases productivity.

6) Operator enters data for tufting positions under "Teach-Mode". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.




Technical Parameter for 2-Axis Broom Tufting Machine WXD-2A2H02:

Standard Working Area of Working Table	X-axis x Y-axis = 350mm x 180mm (Other size could be customized)
Material of Brush Handle	Plastic, wood
Material of Brush Filaments	PP, PVC, PET, nylon, etc.
Length of Filaments (Outside Holes)	10mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm
Diameter of Holes	2mm - 7mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	5 holes per second
Specifications of Machine Body	2.05m(Length) x 1.35m(Width) x 1.7m(Height)
Motor (Power System)	With step-motor by default; also we could use servo-motor instead, if required by clients.
Data Input for Tufting Positions	Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved. Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 80 programs for making different brushes.
Gross Weight	Around 450KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	Either 1-phase 220V or 3-phase 380V, 50-60Hz, 600W
Replaceable Grippers	FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
Tufting Mode	Anchor-type (using flat wires)
Packing	Wood case for machine body: 2.10m x 1.50mm x 1.75m  Wood case for computer: 0.6m x 0.6m x 1.5m
