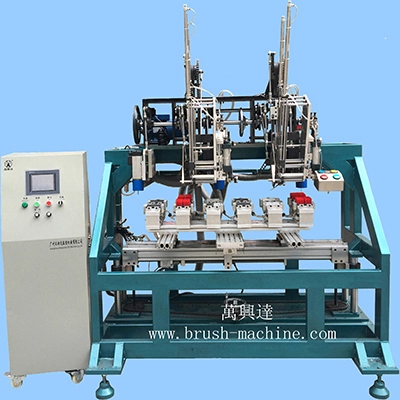

2-Axis 5-Head Cloth Brush Drilling & Tufting Machine WXD-2A5H01.

Features of 2-Axis 5-Head Cloth Brush Drilling & Tufting Machine WXD-2A5H01.

1) The WXD-2A5H01, with three drilling head, double tufting head, in Germany style.
With special fixture design for cloth brush, there is six sets of gripper in the working table,
in each gripper, it can fix 4 PCS of cloth brush block.

2) Drilling holes and tufting filament straightly, drilling holes and tufting filament synchronously.

3) For the cloth brush, max working speed is 7 holes per second.

4) It can produce wide range of flat brush if the operators change the fixtures accordingly.

5) With PLC program, the clients can make program for different brush item according to their
requirement in the machine " Teach- Mode".

Technical Parameter for 2-Axis 5-Head Cloth Brush Drilling & Tufting Machine WXD-2A5H01.

Standard Working Area of Working Table	X-axis x Y-axis = 400mm x 200mm (Other size could be customized)
Material of Brush Handle	Plastic or wood
Material of Brush Filaments	PP, nylon, copper wire, stainless steel wire, bristle, horse hair
Length of Filaments (Outside Holes)	10mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm(plastic) , max.0.5mm (steel wire)
Diameter of Holes	3mm - 5mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	7 holes per second
Specifications of Machine Body	1.72m(Length)  x 1.5m(Width) x 1.8m(Height)
Motor (Power System)	Panasonic Servo motors
Data Input	Teach-Mode: Operator manually puts tufting head into holes one by one, then presses “Enter” on hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.  Parameter-type: Operator manually enters digits for several columns.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 84 programs for making different brushes.
Gross Weight	Around 750KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	Either 1-phase 220V or 3-phase 380V; 50-60Hz; 800W
Replaceable Grippers	FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
Tufting Method	Anchor-type, using flat wires
Packing	It’ll be packed into wood cases.  Machine Body: 1.8m(Length)  x 1.58m(Width) x 1.95m(Height)   Computer Box: 0.68m(Length) x0.68m(Width) x 1.5m(Height)
