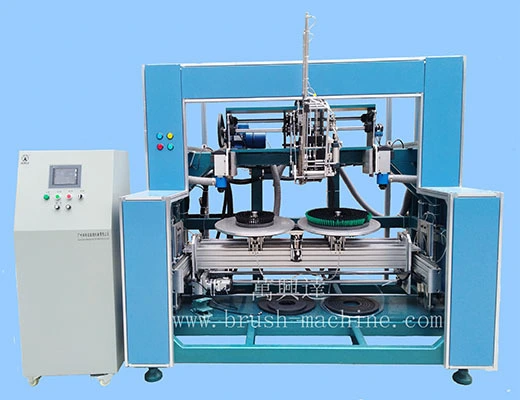

Disc brush drilling and tufting machine WXD-5A3H-06

1) It is a special machine for disc brush, with double drilling head, single tufting head, with 2 sets of fixtures on the working table. 2) The max diameter of disc brush block at 600mm. 3) Produce the disc brus at different diameter of brush bl

    oops...!

    no product data.

    Go to homepage
    Disc brush drilling and tufting machine WXD-5A3H-06 2

    Features of disc brush drilling & tufting machine WXD-5A3H-06

    1) Special machine for disc brush, at max diameter of brush block at 600mm.

    2) The working speed is 6 holes per second.

    3) With independent machine computer and machine body.

    4) Drilling holes and tufting filament at with angles synchronously.

    5) With PLC controller, customers can make the program for different brush accordingly.

    Technical Parameter for disc brush drilling & tufting machine WXD-5A3H-06

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis x H-axis x A-axis = 600mm x 180mm x 100mm x 360°(30°for forward/backward movement and left/right movement)
     Material of Brush Handle  Plastic, wood; with flat, corrugated or fan-shaped surface, or roller-type, or with non-standard shape
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  10mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 6mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  6 holes per second
     Specifications of Machine Body  1.92m x 1.82m x 2.24m
     Motor (Power System)  With Panasonic servo-motor
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 1300KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, 1200W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Mode  staple type
     Packing  It'll be packed in wooden case.
     Wooden case for machine body: 2000mm x 1900mm x 2300mm
     Wooden case for computer box: 680mm x 680mm x 1540mm
