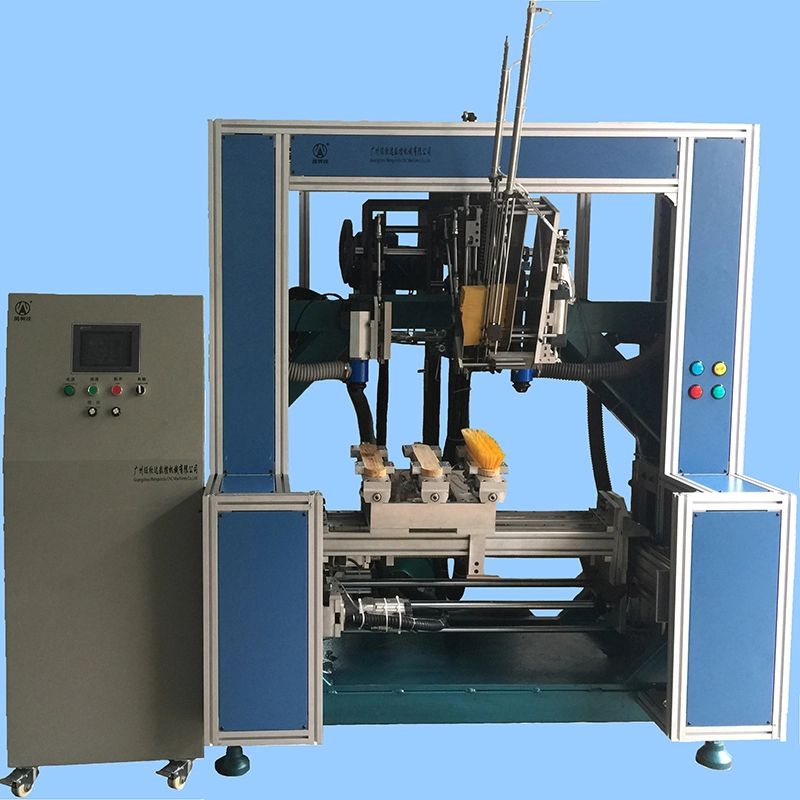

The 5 axis 3 head drilling and tufting machine, with double drilling head, single tufting head, in Germany style. It is the new design with aluminum cover, which guarantee the operation security.

    oops...!

    no product data.

    Go to homepage
    Cost Efficient 5-Axis 3-Head Drilling & Tufting Machine WXD-5A3H-04 2

    Features of 5 axis 3 head drilling and tufting machine WXD-5A3H-04

    1) WXD-5A3H-04 is the New style 5 axis 3 head drilling & tufting machine in 5 axis machine series,

    with servo motors, with automatically lubrication system, with security cover.


    2) With flat working table, which can produce various of flat surface brush, curved surface brush

    such as broom, cloth brush, shoes brush, baby brush, toiet brush and so on.


    3) With round working table, which can produce the round toilet brush, ceiling brush, double

    hockey brush etc.

    4) With PLC (Programmable Logic Controller), the operators can make different brush program

    according to his requirement.

    5) With three sets of grippers on working table, in the automatically working condition, when

    drilling holes well, it will turn into tufting filament mode automatically without stop.

    Technical Parameter for 5 axis 3 head drilling and tufting machine WXD-5A3H-04

    Standard Working Area of Working Table

    X-axis*Y-axis*Z-axis*A-axis*H-axis = 100mm*320mm*100°*40°*120mmothers size could be customized)

    Material of brush base

    Plastic, wood

    Material of brush filaments

    PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc

    Length of filaments (outside holes)

    10mm-120mm

    Diameter of holes

    3mm-6mm

    Colors of filament

    Either single color or two colors

    Maximum tufting speed

    5 holes per second

    Specification of machine body

    1.68m(length) * 1.7m (width) * 2.02m (height)

    Motor ( power system)

    Servo motors

    Data input for tufting positions

    Teaching mode: Operators manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits mode: Operator manually enters digits (coordinates of X/Y axis) for tufting position.

    Touchable Screen

    With 5.4 inch touchable monitor controller, interface is in English or other languages required by clients, operating in dialogue-mode, which is quite simple and easy.

    Speed Adjusting

    Frequency-conversion stepless adjustable speed

    Qty of programs saved

    It saves totally 9 program for different brush item.

    Gross Weight

    Around 1100KGS

    Programming

    PLC (Programmable Logic Controller)

    Power Supply

    Either 3-phase 380VAC, 50-60HZ, 1200W

    Replaceable Grippers

    FMS type. Operator could make other kinds of brushes, as long as he changes grippers.

    Tufting Method

    Staples type

    Packing

    Packed into wood cases.

    Wood case for machine body 1.68m*1.7m*2.02m

    Wood case for computer box 0.66m*0.62m*1.56m
