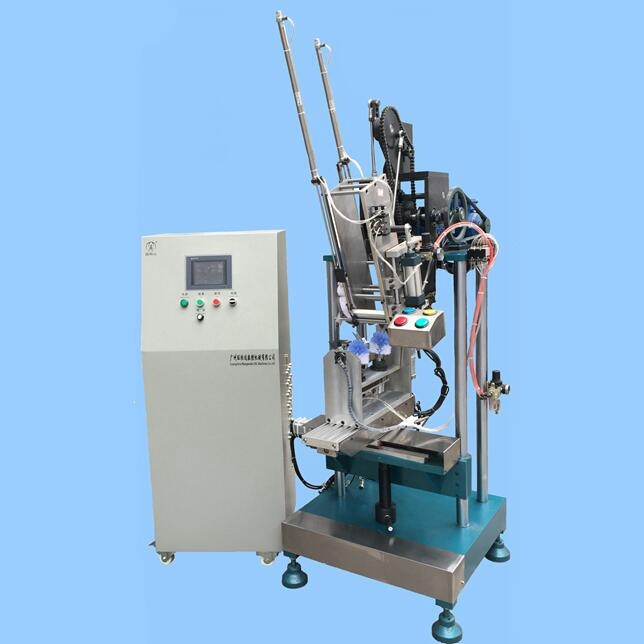

Features of 4 axis round toilet brush tufting machine (Anchor Type) WXD-4A-009
1) WXD-4A-009 with special gripper design for single hockey brush. If the gripper was changed
accordingly, it can produce not only single hockey brush, but also flat surface broom.
2) With PLC (Programmable Logic Controller), the operators can make different brush program
according to his requirement.
3) With double sets of grippers on working table, in the automatically working condition, they will
take turns to tufting filament into brush block.
Technical Parameter for 4 axis toilet brush tufting machine WXD-4A-009
|Standard Working Area of Working Table||X-axis x Y-axis x Z-axis x H-axis = 350mm x 180mm x 100mm x 360°(or 30°)|
|Material of Brush Bases||Plastic, wood|
|Material of Brush Filaments||PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc.|
|Length of Filaments (Outside Holes)||10mm - 120mm|
|Diameter of Brush Filaments||0.08mm - 1.2mm|
|Diameter of Holes||2.5mm - 5mm|
|Colors of Filaments||Either single color or two colors|
|Maximum Tufting Speed||6 holes per second|
|Specifications of Machine Body||1.20m(Length) x 1m(Width) x 2.05m(Height)|
|Motor (Power System)||Servo motors|
|Data Input for Tufting Positions||
Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.
Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
|Touchable Screen||With 5.4'' touchable monitor controller; interface is in English or other languages required by customers, operating in dialogue-mode, which is quite simple and easy.|
|Speed Adjusting||Frequency-conversion stepless-adjustable speed|
|Qty of Programs Saved||It saves totally 84 programs for making different brushes.|
|Gross Weight||Around 550KGS|
|Programming||PLC (Programmable Logic Controller)|
|Power Supply||Either 3-phase 380V or 1-phase 220V, 50-60Hz, 800W|
|Replaceable Grippers||FMS type. Operator could make other kinds of brushes, as long as he changes grippers.|
|Tufting Method||Anchor-type (using flat wires)|
Packed into wood cases.
Wood case for machine body: 1.23m x 1.07m x 2.08m
Wood case for computer box: 0.80m x 0.80m x 1.56m
