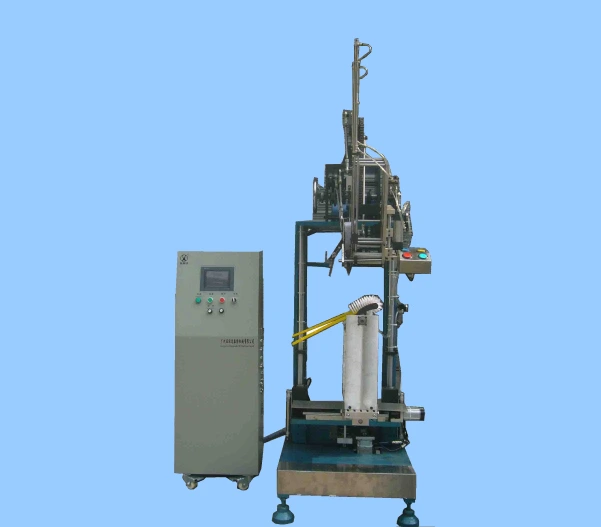

4-Axis Hockey Brush Tufting Machine WXD-4A-007

It is the new style special double hockey brush tufting machine with up and down working axis.


    no product data.

    Go to homepage

    4-Axis Hockey Brush Tufting Machine WXD-4A-007 2

    Features of 4 Axis Hockey Brush Tufting Machine WXD-4A-007(Anchor Type)

     WXD-4A-007 is the New style double hockey brush tufting machine in 4 axis machine series, with servo motors, used to produce hockey brushes with filament in double colors. Please note that the plastic brushes block should be with holes in mould, since it is only a tufting machine without drilling holes function.

    With 5.4 inch touchable screen, the interface is available in various languages, such as Chinese, English, Spanish, Vietnamese, French, etc, as required by clients.

     With PLC (Programmable Logic Controller), this operates precisely with excellent stability.

     The working table of this hockey brushes tufting machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    There are two grippers on working table, in the automatically working condition, which will work alternatively without stop.

     Operators enters data for tufting positions by either “Teaching Mode” or “ Digits Mode”. On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    Technical Parameter for 4-Axis Hockey Brush Tufting Machine WXD-4A-007

    Standard Working Area of Working Table

    X-axis * Y-axis * Z-axis * H-axis = 350mm*180mm*100mm*360

    Material of brush base


    Material of brush filaments

    PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc

    Length of filaments (outside holes)


    Diameter of holes


    Colors of filament

    Either single color or two colors

    Maximum tufting speed

    5 holes per second

    Specification of machine body

    1.3m(length) * 1.1m (width) * 2.1m (height)

    Motor ( power system)

    Servo motors

    Data input for tufting positions

    Teaching mode: Operators manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits mode: Operator manually enters digits (coordinates of X/Y axis) for tufting position.

    Touchable Screen

    With 5.4 inch touchable monitor controller, interface is in English or other languages required by clients, operating in dialogue-mode, which is quite simple and easy.

    Speed Adjusting

    Frequency-conversion stepless adjustable speed

    Qty of programs saved

    It saves totally 84 programs for making different brushes.

    Gross Weight

    Around 370KGS


    PLC (Programmable Logic Controller)

    Power Supply

    Either 3-phase 380V or 1-phase 220V, 50-60HZ,600W

    Replaceable Grippers

    FMS type. Operator could make other kinds of brushes, as long as he changes grippers.

    Tufting Method

    Anchor type (using flat wire)


    Packed into wood cases.

    Wood case for machine body 1.3m*1.1m*2.1m

    Wood case for computer box 0.8m*0.8m*1.56m
