4 axis curved broom tufting machine WXD-4A-010

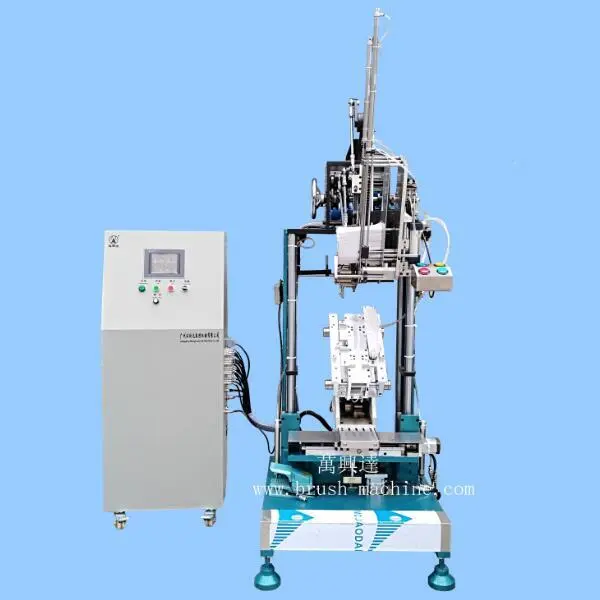

This is the 4 axis curved broom tufting machine, after change the machine fixtures, it can produce the flat surface brush, curved brush with beautiful brush angles.


    no product data.

    Go to homepage

    4 axis curved broom tufting machine WXD-4A-010 2

    Features of 4 Axis Curved Brush Tufting Machine WXD-4A-010 (Anchor Type)

    1) WXD-4A-010 is the special brush tufting machine for curved surface brush and flat surface brush, such
    as single hockey toilet brush, fan-shape broom and so on.
    Please note that the plastic brushes block should be with holes in mould, since it is only a tufting machine
    without drilling holes function.

    2) It can produce the brush in max working speed at 6 holes per second.

    3) With 5.4 inch touchable screen, the interface is available in various languages, such as Chinese, English,

    Spanish, Vietnamese, French, etc, as required by clients.

    4) With PLC (Programmable Logic Controller), this operates precisely with excellent stability.

    5) The working table of this disc brushes tufting machine is composed of straight-line guide rail and ball

    screw with high precision, which is quite stable and durable.

    6) Operators enters data for tufting positions by either “Teaching Mode” or “ Digits Mode”. On

    operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite

    simple and convenient.

    Technical Parameter for 4-Axis Curved Brush Tufting Machine WXD-4A-010 ( Anchor Type )

    Standard Working Area of Working Table

    X-axis * Y-axis * Z-axis * H-axis = 350mm*180mm*120 °120 °

    Material of brush base


    Material of brush filaments

    PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc

    Length of filaments (outside holes)


    Diameter of holes


    Colors of filament

    Either single color

    Maximum tufting speed

    6 holes per second

    Specification of machine body

    1.12m(length) * 0.94m (width) * 1.80m (height)

    Motor ( power system)

    Panasonic Servo motors

    Data input for tufting positions

    Teaching mode: Operators manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits mode: Operator manually enters digits (coordinates of X/Y axis) for tufting position.

    Touchable Screen

    With 5.4 inch touchable monitor controller, interface is in English or other languages required by clients, operating in dialogue-mode, which is quite simple and easy.

    Speed Adjusting

    Frequency-conversion stepless adjustable speed

    Qty of programs saved

    It saves totally 84 programs for making different brushes.

    Gross Weight

    Around 370KGS


    PLC (Programmable Logic Controller)

    Power Supply

    Either 3-phase 380V or 1-phase 220V, 50-60HZ,1200W

    Replaceable Grippers

    FMS type. Operator could make other kinds of brushes, as long as he changes grippers.

    Tufting Method

    Anchor  type (using Flat Wire)


    Packed into wood cases.

    Wood case for machine body 1.3m*1.1m*2.1m

    Wood case for computer box 0.8m*0.8m*1.56m
