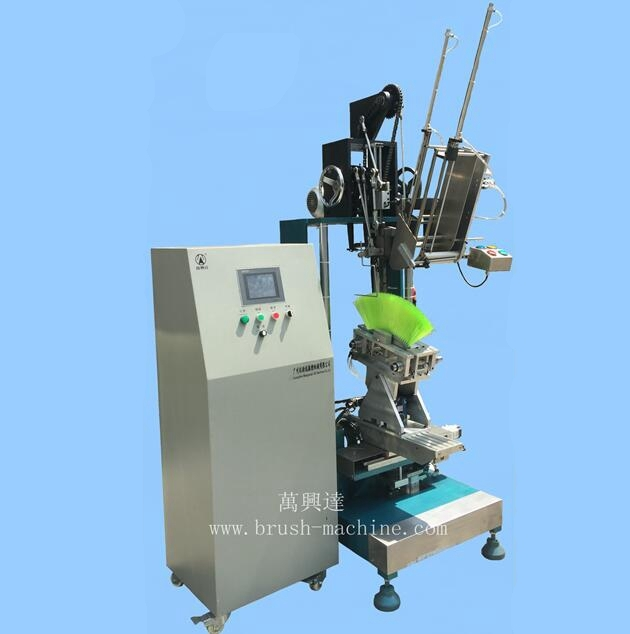

4-axis ceiling broom tufting machine WXD-4A004

This is the special ceiling broom tufting machine, with max length of filament outside holes 150mm, in big machine frame, with Panasonic servo motor & Panasonic driver.

    oops...!

    no product data.

    Go to homepage

    4-axis ceiling broom tufting machine WXD-4A004 2

    Features of 4-axis ceiling broom tufting machine WXD-4A004


    1)
     WXD-4A004 is the special ceiling broom tufting machine in 4 axis machine series, with servo motors, used to produce ceiling broom with 150mm length of filament outside holes. Please note that the plastic brushes block should be with holes in mould, since it is only a tufting machine without drilling holes function.


    2)
    With 5.4 inch touchable screen, the interface is available in various languages, such as Chinese, English, Spanish, Vietnamese, French, etc, as required by clients.


    3)
     With PLC (Programmable Logic Controller), this operates precisely with excellent stability.


    4)
     The working table of this ceiling brushes tufting machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.


    5)
    There are two grippers on working table, in the automatically working condition, which will work alternatively without stop.


    6)
     Operators enters data for tufting positions by either “Teaching Mode” or “ Digits Mode”. On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.


    Technical Parameter for  4-axis ceiling broom tufting machine WXD-4A004

     Standard Working Area of Working Table  X-axis x Y-axis x Z-axis x H-axis = 400mm x 100mm x 100mm x 360°(or 30°)
     Material of Brush Bases  Plastic, wood
     Material of Brush Filaments  PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc.
     Length of Filaments (Outside Holes)  10mm - 180mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 5mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed 4 holes per second
     Specifications of Machine Body  1.20m(Length) x 1m(Width) x 2.05m(Height)
     Motor (Power System)  Servo motors
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other languages required by customers, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Gross Weight  Around 550KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  Either 3-phase 380V or 1-phase 220V, 50-60Hz, 800W
     Replaceable Grippers  FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
     Tufting Method  Anchor-type (using flat wires)
     Packing  Packed into wood cases.
     Wood case for machine body: 1.50m x 1.52m x 2.08m
     Wood case for computer box: 0.80m x 0.80m x 1.56m
