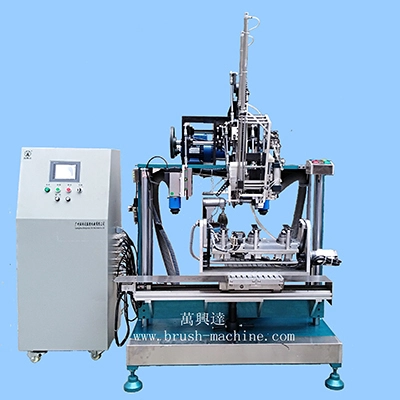

1) WXD-4A3H03 is the special brush machine for round toilet brush & round ceiling brush, it can be network
with both short length bristle or long length bristle, max length of bristle outside holes at 120mm.
2) For the brush block, it can be with handles or without handles, in plastic brush block.
3) The machine will be attached with independently vacuum cleaner to collect the waste from drilling head.
4) With PLC (Programmable Logic Controller), clients can make the program for each brush item according to
their requirement.
5) For the round toilet brush without handles, when it was completely finished, it will drop out from the fixtures automatically,
Technical Parameter for 4 Axis 3 Head Round Toilet Brush Drilling & Tufting Machines WXD-4A3H03 (Staple Type)
Standard Working Area of Working Table
X-axis * Y-axis * Z-axis * H-axis = 350mm*180mm*100*360 °
Material of brush base
Plastic
Material of brush filaments
PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc
Length of filaments (outside holes)
10mm-120mm
Diameter of holes
3mm-6mm
Colors of filament
single color or double color
Maximum tufting speed
6 holes per second
Specification of machine body
1.45m(length) * 1.23m (width) * 2.16m (height)
Motor ( power system)
Servo motors
Data input for tufting positions
Teaching mode: Operators manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.
Digits mode: Operator manually enters digits (coordinates of X/Y axis) for tufting position.
Touchable Screen
With 5.4 inch touchable monitor controller, interface is in English or other languages required by clients, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting
Frequency-conversion stepless adjustable speed
Qty of programs saved
It saves totally 84 programs for making different brushes.
Gross Weight
Around 1200KGS
Programming
PLC (Programmable Logic Controller)
Power Supply
3-phase 380V or 1-phase 220V, 50-60HZ,1200W
Replaceable Grippers
FMS type. Operator could make other kinds of brushes, as long as he changes grippers.
Tufting Method
Staple type (using Round Wire)
Packing
Packed into wood cases.
Wood case for machine body 1.60m*1.45m*2.25m
Wood case for computer box 0.8m*0.8m*1.56m
which because of the air pressure.
