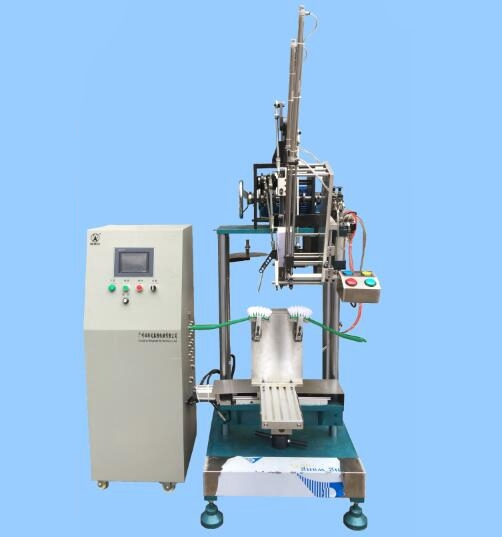

3 axis single hockey brush tufting machine WXD-3A-006
Features of 3 axis single hockey brush tufting machine (Anchor Type) WXD-3A-006
1) WXD-3A-006 with special gripper design for single hockey brush. If the gripper was changed
accordingly, it can produce not only single hockey brush, but also flat surface broom.
2) With PLC (Programmable Logic Controller), the operators can make different brush program
according to his requirement.
3) With double sets of grippers on working table, in the automatically working condition, they will
take turns to tufting filament into brush block.
Technical Parameter for 3 axis single hockey brush tufting machine (Anchor Type) WXD-3A-006
Standard Working Area of Working Table
X-axis x Y-axis x Z-axis = 350mm x 150mm x 100°
Material of Brush Handle
Plastic
Material of Brush Filaments
PP, nylon, copper wire, stainless steel wire, bristle
Length of Filaments (Outside Holes)
8mm - 120mm
Diameter of Brush Filaments
0.08mm - 1.2mm
Diameter of Holes
3mm - 5mm
Colors of Filaments
Either single color or two colors
Maximum Tufting Speed
5 holes per second
Specifications of Machine Body
1.3m x 1.12m x 1.4m
Motor (Power System)
With step-motor by default; also we could use servo-motor instead, if required by clients.
Data Input for Tufting Positions
Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.
Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
Touchable Screen
With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting
Frequency-conversion stepless-adjustable speed
Qty of Programs Saved
It saves totally 10 programs for making different brushes.
Gross Weight
Around 450KGS
Programming
PLC (Programmable Logic Controller)
Power Supply
3-phase 380V, or single-phase 220V, 50-60Hz, 600W
Replaceable Clamp
FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
Tufting Mode
Anchor-type (using flat wires)
Packing
It'll be packed into wood case.
Wood case for machine body: 1300mm x 1200mm x 1500mm
Wood case for computer box: 680mm x 680mm x 1400mm
