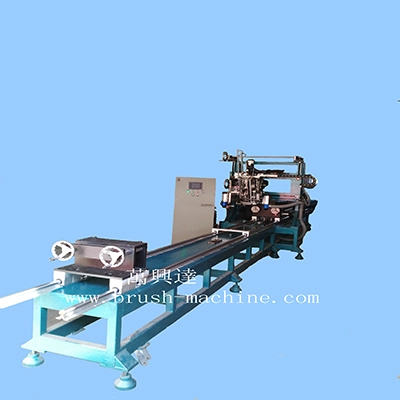

3 axis 3 head long roller brush machine WXD-3A-L002

It is the special industrial brush machine, the max length of brush block will be at 8000mm, the max diameter of brush block will be 200mm, with two sets of fixtures on the working table.

    oops...!

    no product data.

    Go to homepage
    3 axis 3 head long roller brush machine WXD-3A-L002 2



    Features of 3-Axis Cylinder Brush & Plate Brush Making Machine  WXD-3A-L002

    1) Special industrial brush customerised machine
    The max length of brush block will be 8000mm
    The max diameter of brush block will be 200mm
    With two sets of gripper on the working table
    The max working speed will be 6 holes / second


    2) With customerised support for cylinder brush, it can make wide range of  roller brush at different diameter and length.

    3) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English.

    4) With PLC (Programmable Logic Controller), in the program with different design for cylinder brush only,
    if the operators select the design mode and enter the brush specification, the machine will produce the brush accordingly.

    5) The working table is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    7) During the shipment, the machine will be separate into four parts, the machine head, the machine computer , the machine body with frame,
    the machine working table.
    When the machine arrive in customers factory, we will help to test the machine and make the trial production.

    Technical Parameter for 3-Axis Cylinder Brush & Plate Brush Making Machine  WXD-3A-L002

     Maximum Drilling/Tufting Area (Standard)  X-axis x Y-axis x Z-axis = 360º x 8000mm x 200mm
    (Other Sizes Should be customized)
     Material of  Brush Bases  Cylindrical plastic, cylindrical wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristles
     Length of Filaments (Outside Holes)  8mm - 110mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 7mm
     Colors of Brush Filaments   Single color
     Maximum Drilling/Tufting Speed 6 holes per second
     Specifications of Machine Body 8000mm (L) * 1200mm (W)* 1800 (H)
     Motor (Power System)  Servo-motor
     Data Input for Tufting Positions                              Teaching-type: Operator select the design mode and enter the specification of brush, the program will be done by computer automatically.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 8000 holes
     Gross Weight  Around 1200KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or  50-60Hz, 1200W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Packing  It'll be packed in wooden case.
    Wooden case for machine body: 4.26m x 0.9m x 1.21m
    Wooden case for machine body with frame: 4.25m x 0.9m x 1.55m
    Wooden case for computer box: 0.57m x 0.67m x 1.54m
    Wooden case for machine head: 1.23m x 0.935m x 1.12m
