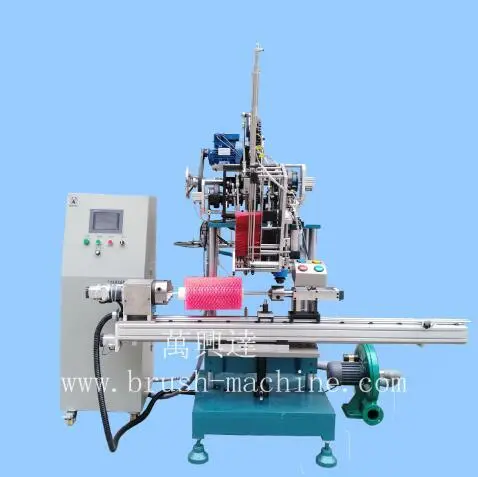

2 Axis Small Roller Brush Machine WXD-2A2H-05

This is the 2 axis small industrial cylinder brush machine, with the max length of brush block at 1000mm , with the max diameter of brush block at 100mm, attached with independently dust catcher.
5.0
Price:
EXW, FOB, CIF
Payment:
T/T
Package:
wooden case
Model:
WXD-2A2H-05
Minimum:
1 Set
Delivery:
By Sea
Country:
China
BrandName:
Wangxinda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    2 Axis Small Roller Brush Machine WXD-2A2H-05 2

    Features of 2 axis small roller brushes machine WXD-2A2H-05


    1) WXD-2A2H-05 is good at making small roller brush in both plastic and wooden brush block.
    With the max length of brush block at 1000mm
    With the max diameter of brush block at 100mm
    With independently dust catheter.

    2) With 5.4 inch touchable screen, the interface is available in various languages, such as Chinese, English, as required by clients.

    3) With PLC (Programmable Logic Controller), this operates precisely with excellent stability.

    4) Usually the operators make the program for cylinder brush in “ Parameter- Mode”, one the screen, operators can insert , delete, adjust, copy, separate and move holes, it is easy to operate.

    Technical Parameter for 2 axis small roller brushes machine WXD-2A2H-05

    Standard Working Area of Working Table

    X-axis * Y-axis = 360°*1000mm

    Material of brush base

    Plastic, wood

    Material of brush filaments

    PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc

    Length of filaments (outside holes)

    10mm-120mm

    Diameter of holes

    3mm-5mm

    Colors of filament

    Either single color or two colors

    Maximum tufting speed

    5 holes per second

    Specification of machine body

    2.25m(length) * 1.17m (width) * 2.1m (height)

    Motor ( power system)

    Panasonic Servo motors

    Data input for tufting positions

    Teaching mode: Operators manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits mode: Operator manually enters digits (coordinates of X/Y axis) for tufting position.

    Touchable Screen

    With 5.4 inch touchable monitor controller, interface is in English or other languages required by clients, operating in dialogue-mode, which is quite simple and easy.

    Speed Adjusting

    Frequency-conversion stepless adjustable speed

    Qty of programs saved

    It saves totally 8000 holes

    Gross Weight

    Around 550KGS

    Programming

    PLC (Programmable Logic Controller)

    Power Supply

    Either 3-phase 380V or 1-phase 220V, 50-60HZ,600W

    Replaceable Grippers

    FMS type. Operator could make other kinds of brushes, as long as he changes grippers.

    Tufting Method

    Anchor type or Staples type

    Packing

    Packed into wood cases.
    Wood case for the working table 2.13m*0.45m*0.35m

    Wood case for machine body 0.94m*1.17m*1.85m

    Wood case for computer box 0.57m*0.57m*1.48m
