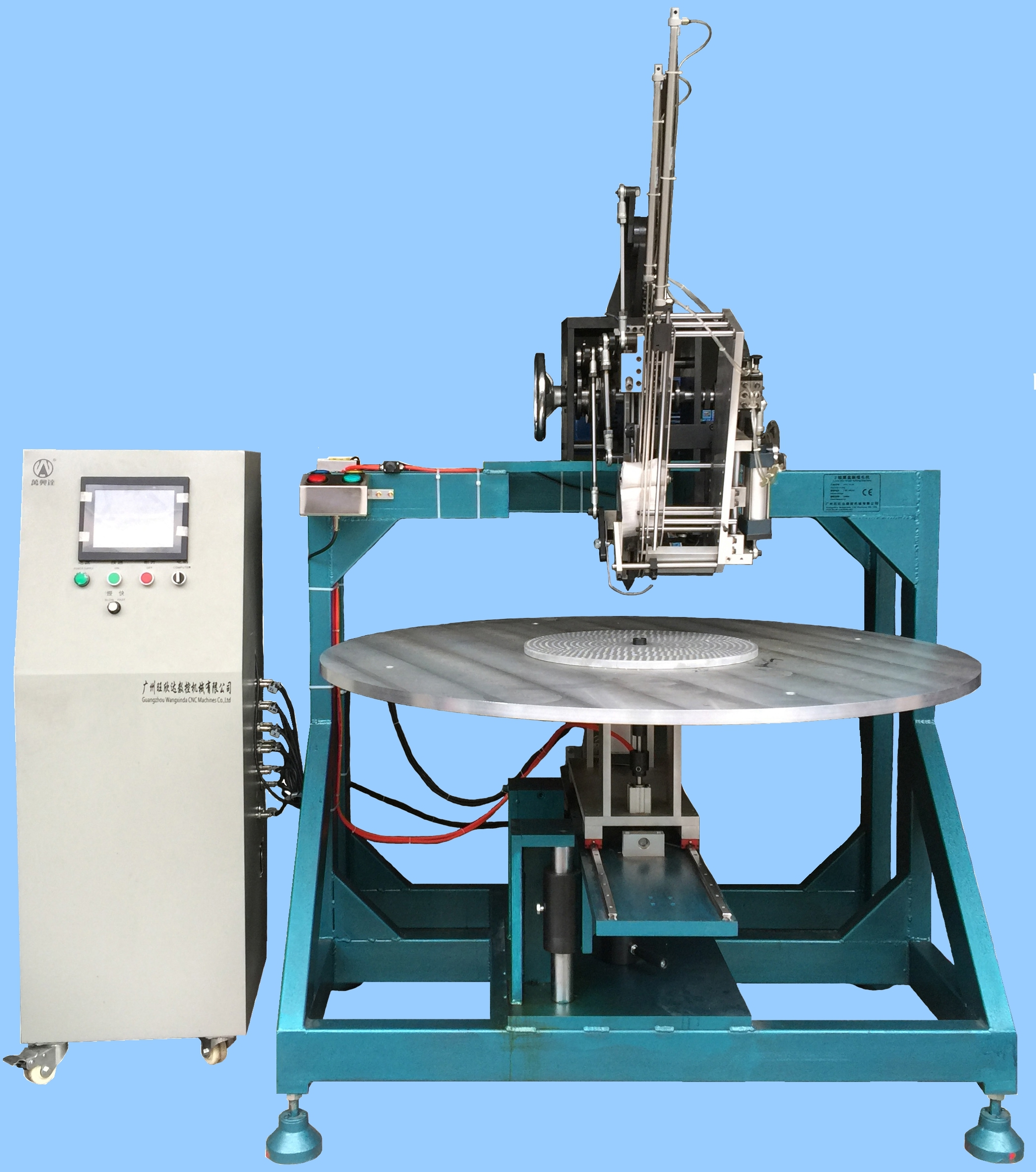

2-Axis Outsize Disc Brush Tufting Machine WXD-2A004

The special tufting machine for outsize disc brush, which not only produce the disc brush, but also the plate brush, strip brush and so on. It is suitable for the clients who professional in industrial brush.
5.0
Price:
FOB, CIF
Payment:
L/C, D/P, T/T
Package:
wooden case
Model:
WXD-2A-004
Minimum:
1 Set
Delivery:
By sea
Country:
China
BrandName:
Wangxinda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    2-Axis Outsize Disc Brush Tufting Machine WXD-2A004 2

    Features of 2-Axis Outsize Disc Brush Tufting Machine WXD-2A004 (staple type )

    1> The 2 axis outsize disc brush tufting machine, was customerized by our clients, used to tufting
    the disc brush at max 1200mm diameter.

    Please noted that the brush block should be pre-holes in advance, the machines has tufting
    filament function ONLY.

    2> For the disc brush tufting machine, it tufts the filament straightly, without any angles.
    If you would like to produce the disc brush with angles, please kindly view at 4 axis disc brush
    tufting machine.

    3> With the same working table to fixed the brush block, after select the brush design, it not only
    produce the disc brush, but also the strip brush, plate brush.

    4> In the Teach Mode, the operators enter the brush specification, the computer will make the
    program for different brush item automatically.

    Technical Parameter for 2-Axis Outsize Disc Brush Tufting Machine WXD-2A004 (staple type )

    Standard Working Area of Working Table

    X-axis * Y-axis = 1200mm*360°

    Material of brush base

    Plastic

    Material of brush filaments

    PP, PVC, PET, nylon, pig bristle, horse hair, tampico, etc

    Length of filaments (outside holes)

    10mm-120mm

    Diameter of holes

    3mm-6mm

    Colors of filament

    Either single color

    Maximum tufting speed

     4 holes per second

    Specification of machine body

    1.8m(length) * 1.12m (width) * 1.75m (height)

    Motor ( power system)

    Servo motors

    Data input for tufting positions

    Teaching mode: Operators select the brush design and enter the brush dimension. By this way, all data for tufting position has been entered and saved.

    Digits mode: Operator manually enters digits (coordinates of X/Y axis) for tufting position.

    Touchable Screen

    With 5.4 inch touchable monitor controller, interface is in English or other languages required by clients, operating in dialogue-mode, which is quite simple and easy.

    Speed Adjusting

    Frequency-conversion stepless adjustable speed

    Qty of programs saved

    It saves totally 84 programs for making different brushes.

    Gross Weight

    Around 370KGS

    Programming

    PLC (Programmable Logic Controller)

    Power Supply

    Either 3-phase 380V or 1-phase 220V, 50-60HZ,600W

    Replaceable Grippers

    FMS type. Operator could make other kinds of brushes, as long as he changes grippers.

    Tufting Method

    Staple type (using Round Wire)

    Packing

    Packed into wood cases.

    Wood case for machine body 1.9m*1.2m*1.8m

    Wood case for computer box 0.65m*0.65m*1.5m
