2 axis 3 head disc brush drilling & tufting machine WXD-2A3H02 1
2 axis 3 head disc brush drilling & tufting machine WXD-2A3H02 1

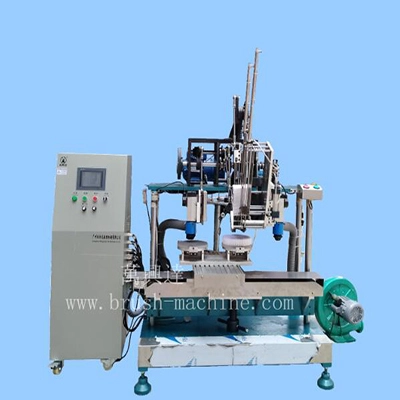

2 axis 3 head disc brush drilling & tufting machine WXD-2A3H02

This is the customerised machine for flat disc brush according to clients' requirement. It will be drilling holes and tufting filament straightly, with two sets of fixturn on the working table.
5.0
Price:
EXW, FOB, CIF
Payment:
T/T
Package:
wooden case
Model:
WXD-2A3H02
Minimum:
1 Set
Delivery:
By sea
Country:
China
BrandName:
Wangxinda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    2 axis 3 head disc brush drilling & tufting machine WXD-2A3H02 2



    Features of 2 axis 3 head disc brush drilling & tufting machine WXD-2A3H02

    1) WXD-2A3H02 with max 200mm disc brush fixture on the working table, with straightly drilling holes and tufting filament function.

    2) For the network bristle, the diameter of each bristle should be from 0.08mm – 1.2mm, in PP,  PVC, PEC, Nylon, tampico material.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.


    Technical Parameter for 2 axis 3 head disc brush drilling & tufting machine WXD-2A3H02

     Standard Working Area of Working Table  X-axis x Y-axis  = 200mm x 200mm
     Material of Brush Handle  Plastic, wood
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  8mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 5mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed 6 holes per second
     Specifications of Machine Body  1.55m x 1.12m x 1.65m
     Motor (Power System)  With servo-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 10 programs for making different brushes.
     Gross Weight  Around 780KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 800W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Mode  Staple-type (using round wires)
     Packing  It'll be packed into wood case.
     Wood case for machine body: 1580mm x 1250mm x 1780mm
     Wood case for computer box: 680mm x 680mm x 1450mm
