Automatic Roller Brush Trimmer WXD-TM600 1
Automatic Roller Brush Trimmer WXD-TM600 1

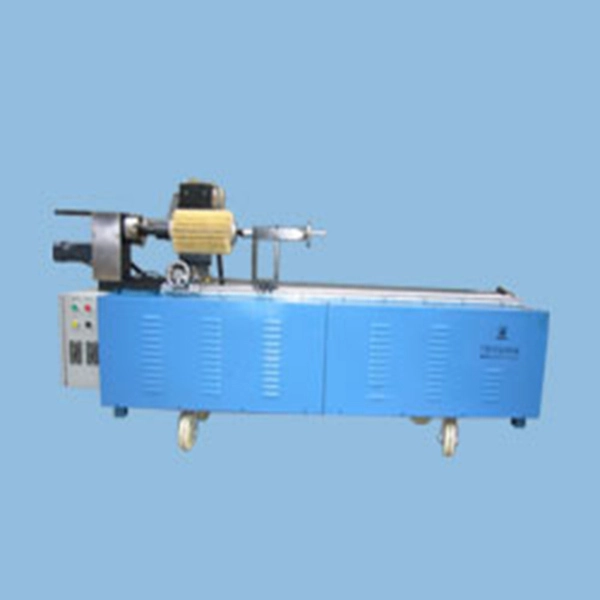

Automatic Roller Brush Trimmer WXD-TM600

This machine trims those big and long cylindrical (roller) brushes with filaments made of plastic, PP, PVC, PET, pig bristles, horse hair, tampico, etc, pls note that the diameter of filaments must not be bigger than 1.2mm.
5.0
Price:
EXW, FOB, CNF, CIF
Payment:
T/T, L/C
Package:
Wood Cases
Model:
WXD-TM600
Minimum:
1 Set
Delivery:
30 Days
Country:
Guangzhou, China
BrandName:
Wanxingda
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage
    Roller Brush Trimmer

    Technical Details for Roller Brush Trimmer WXD-TM600

    1) Item Number: WXD-TM600
    2) Power Input: 0.55KW
    3) Voltage: either 1-phase 220V or 3-Phase 380V, it's optional, ±10% is allowed.
    4) Motor Rotation: 1400RMP
    5) Rated Frequency: 50Hz
    6) Specification: 2.60m(Length) x 0.60m(Width) x 1.20m(Height). Other size could be customized.
    7) Maximum length of cylindrical tube: 1.5m. Other size could be customized.
    8) Maximum diameter of cylindrical tube: 230mm
    9) Maximum length of filaments(outside holes): 80mm
    10) Daily Continuous Working Time: 24Hours
    11) Gross Weight: 600KGS
    12) Packing: Wood Cases

    Overview:

    1) WXD-TM600 is used to trim those big and long cylindrical(roller) brushes, which works automatically.

    2) The blades are made of imported steel with excellent tenacity, being abrasion-resistant. The blade could rotate in both clockwise and counterclockwise directions, which is controlled by the switch installed aside. Please keep in mind that operator should put nothing on the blade before it starts rotating.

    3) This machine trims big and long roller brushes with filaments made of plastic, PP, PVC, PET, pig bristles, horse hair, tampico, etc, the diameter of filaments must not be bigger than 1.2mm.

    4) It is not allowed to trim brushes with metal wires or abrasive filaments.


    Maintenance:

    1) Operator should keep the brush trimmer clean, and often spray the blades with anti-rust agent.

    2) If the blades become blunt, please smear the blades with diamond paste, and then switch it on to make the blades rotate in counterclockwise direction for 5 to 10 minutes. Please note that diamond paste should be wiped out thoroughly after grinding.

    3) Operator should regularly check each part to see whether there are loose screws or not, and please make sure to tighten it if he finds a loose one, so as to avoid any accident.

    4) If the brush trimmer is always deposited in a humid environment, please check whether there is leakage of electricity around the motor before usage. If operator feels leakage of electricity, please make sure to dry it thoroughly before running, so as to keep safe.
