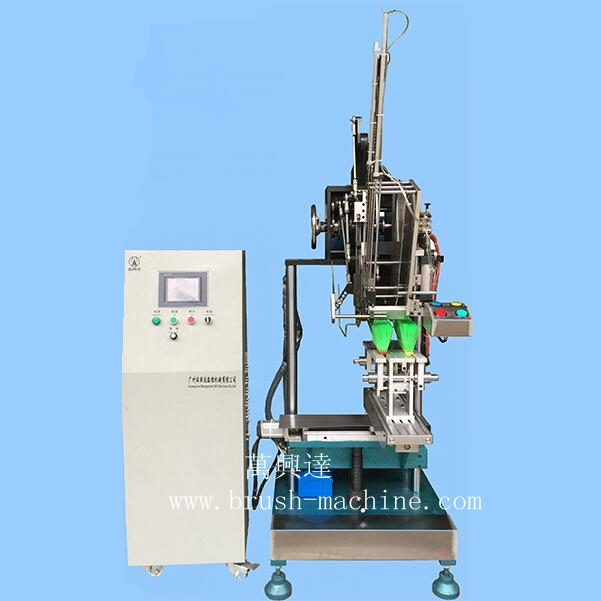

2 axis high speed broom tufting machine WXD-2A-005 1
2 axis high speed broom tufting machine WXD-2A-005 1

2 axis high speed broom tufting machine WXD-2A-005

This is 2 axis high speed broom tufting machine, max working speed up to 8 holes per second, with special gripper design, can make wide range of flat surface brush, such as broom, cloth brush, shoes brush, baby brush and so on.

    oops...!

    no product data.

    Go to homepage

    2 axis high speed broom tufting machine WXD-2A-005 2


    Features of 2 axis high speed broom tufting machine WXD-2A-005

    1) WXD-2A-005 with max working speed up to 8 holes per second, with special gripper design, can make wide range of flat surface brush, such as broom, cloth brush, shoes brush, baby brush and so on.

    2) For the plastic brush block should be with holes in mould in advance. For the network bristle, the diameter of each bristle should be from 0.08mm – 1.2mm, in PP,  PVC, PEC, Nylon, tampico material.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

    4) The working table of this broom machine is composed of straight-line guide rails and screw mandrels with high precision, which is quite stable and durable.

    Technical Parameter for 2 axis high speed broom tufting machine WXD-2A-005


     Standard Working Area of Working Table  X-axis x Y-axis  = 400mm x 200mm
     Material of Brush Handle  Plastic
     Material of Brush Filaments  PP, nylon, copper wire, stainless steel wire, bristle
     Length of Filaments (Outside Holes)  8mm - 120mm
     Diameter of Brush Filaments  0.08mm - 1.2mm
     Diameter of Holes  3mm - 5mm
     Colors of Filaments   Either single color or two colors
     Maximum Tufting Speed  8 holes per second
     Specifications of Machine Body  1.3m x 1.12m x 1.4m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Data Input for Tufting Positions                                      Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Touchable Screen With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Qty of Programs Saved  It saves totally 10 programs for making different brushes.
     Gross Weight  Around 450KGS
     Programming  PLC (Programmable Logic Controller)
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Tufting Mode  Anchor-type (using flat wires)
     Packing  It'll be packed into wood case.
     Wood case for machine body: 1200mm x 1150mm x 1500mm
     Wood case for computer box: 680mm x 680mm x 1400mm
